Schneider Electric ABLS1A24050 SQUARED Regulated Power Supply 100 to 240V AC 24V 5A

Product Description

The Schneider Electric ABLS1A24050 regulates output power from 100 to 240 volts AC. It provides direct current voltage with an output of five amps at twenty-four volts DC and a maximum power output of one hundred twenty watts. This power supply is suitable for automation systems in industrial, commercial, and residential applications. It is commonly used in conveying, packaging, and control systems for food and beverage, mining, oil and gas, and water applications.

• Rated input voltage: 100V to 240V AC / 140V to 340V DC
• Protection against overloads and short circuits with automatic restart
• Compact design fits on omega rail or mounts with screws

Product Highlights

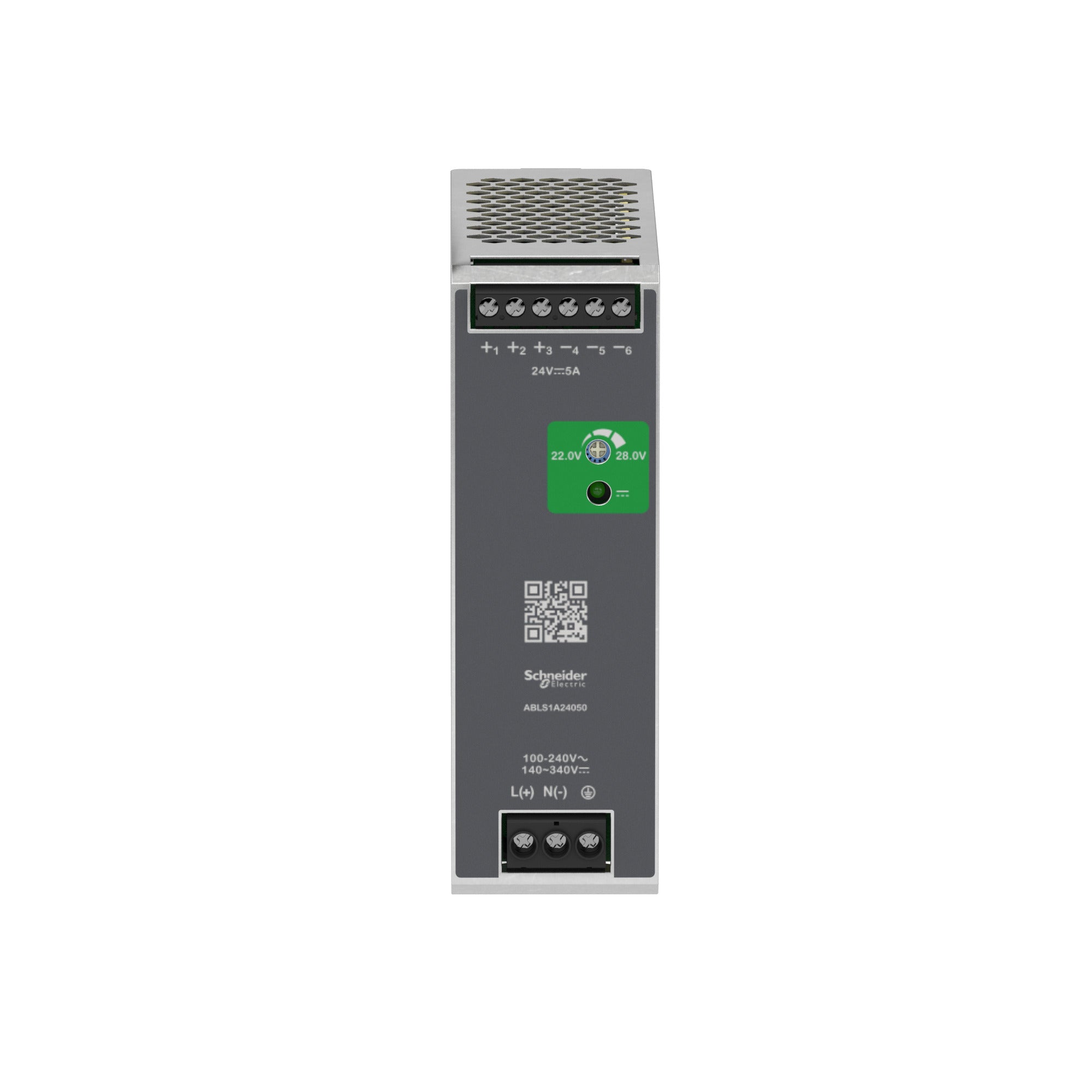

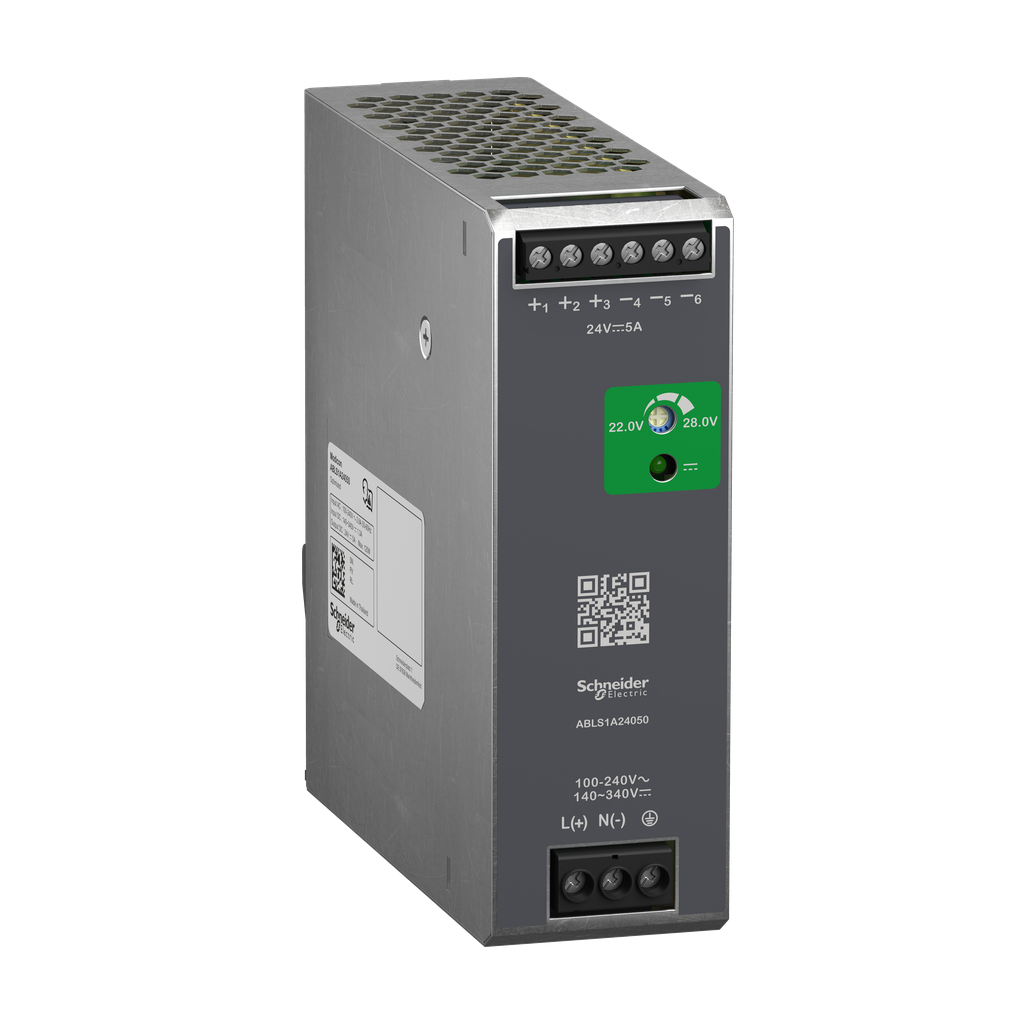

The power supply features a robust design with LED indicators and a QR code for accessing documentation. It is crafted for simple machines, leading to high performance in controlling automated systems.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: Thailand

Technical Specifications

• Catalog Number: ABLS1A24050
• Width: 40 mm
• Height: 123.6 mm
• Depth: 117.6 mm
• Weight: 0.550 kg
• Input Voltage: 100V to 240V AC
• Output Voltage: 24V
• Rated Power: 120W
• Current: 5A
• Efficiency: 85% (115V AC), 88% (230V AC)
