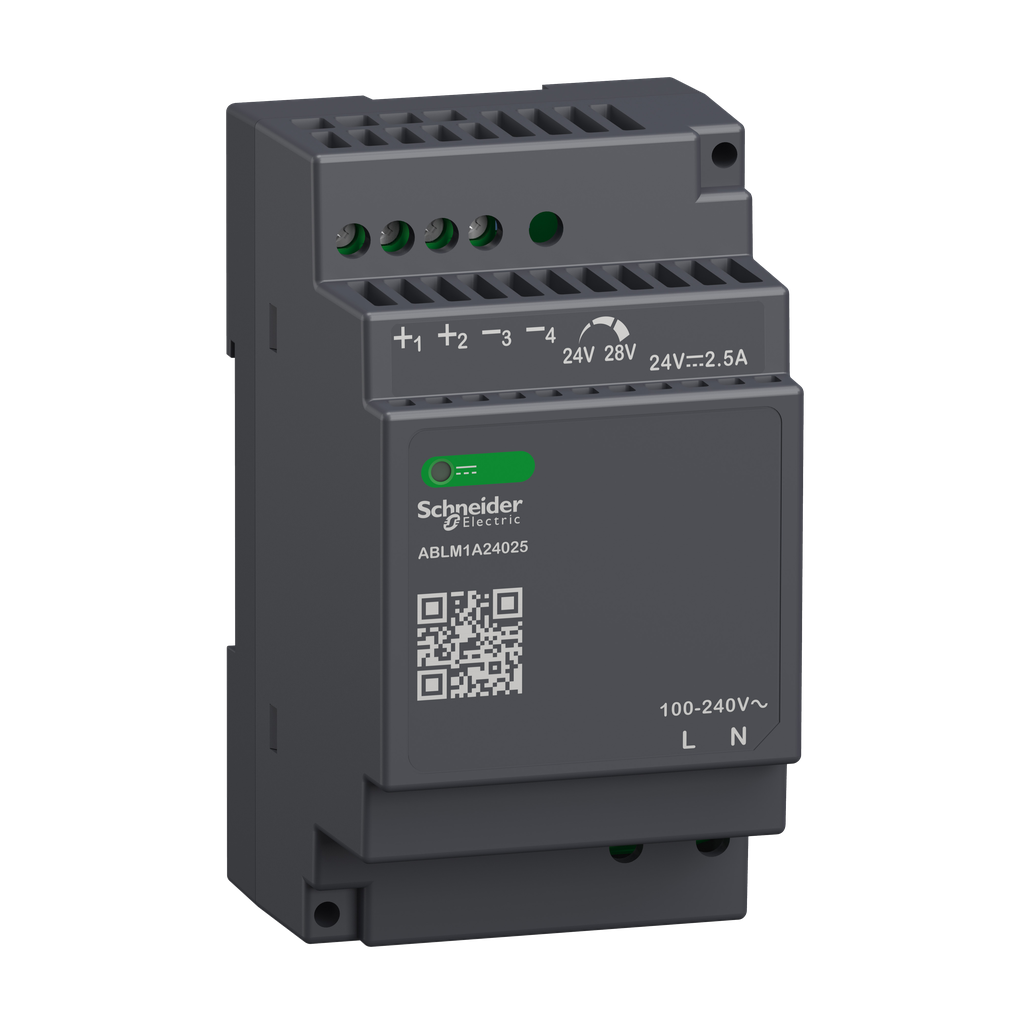

Schneider Electric ABLM1A24025 Regulated Power Supply 100 to 240V AC 24V 2.5A Modular

Product Description

Schneider Electric ABLM1A24025 is a regulated switch mode power supply (SMPS). It converts alternating current to direct current voltage effectively. This unit operates on an input of one hundred to two hundred forty volts AC and provides a reliable output of twenty-four volts DC at a maximum current of two point five amps. The power supply is suitable for various applications, including industrial, commercial, and residential uses such as automation, packaging, control, and food processing.

• Input Voltage: 100V to 240V AC
• Output Voltage: 24V DC
• Compact design suitable for DIN rail mounting

Product Highlights

This power supply is designed for ease of installation. It can be mounted on omega rails or secured via screws. It is built with safety features that protect against overloads and short circuits, ensuring automatic recovery after the issue is resolved.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: ABLM1A24025
• Weight: 0.221 kg

Technical Specifications

• Input Voltage Range: 100V to 240V AC
• Output Current: 2.5A
• Rated Power Output: 60W
• Width: 53mm
• Height: 91mm
• Depth: 55.6mm
• Compliance Standards: UL62368-1, ENIEC61010-1, EN61204-3
• LED Indicator for Output: Yes
