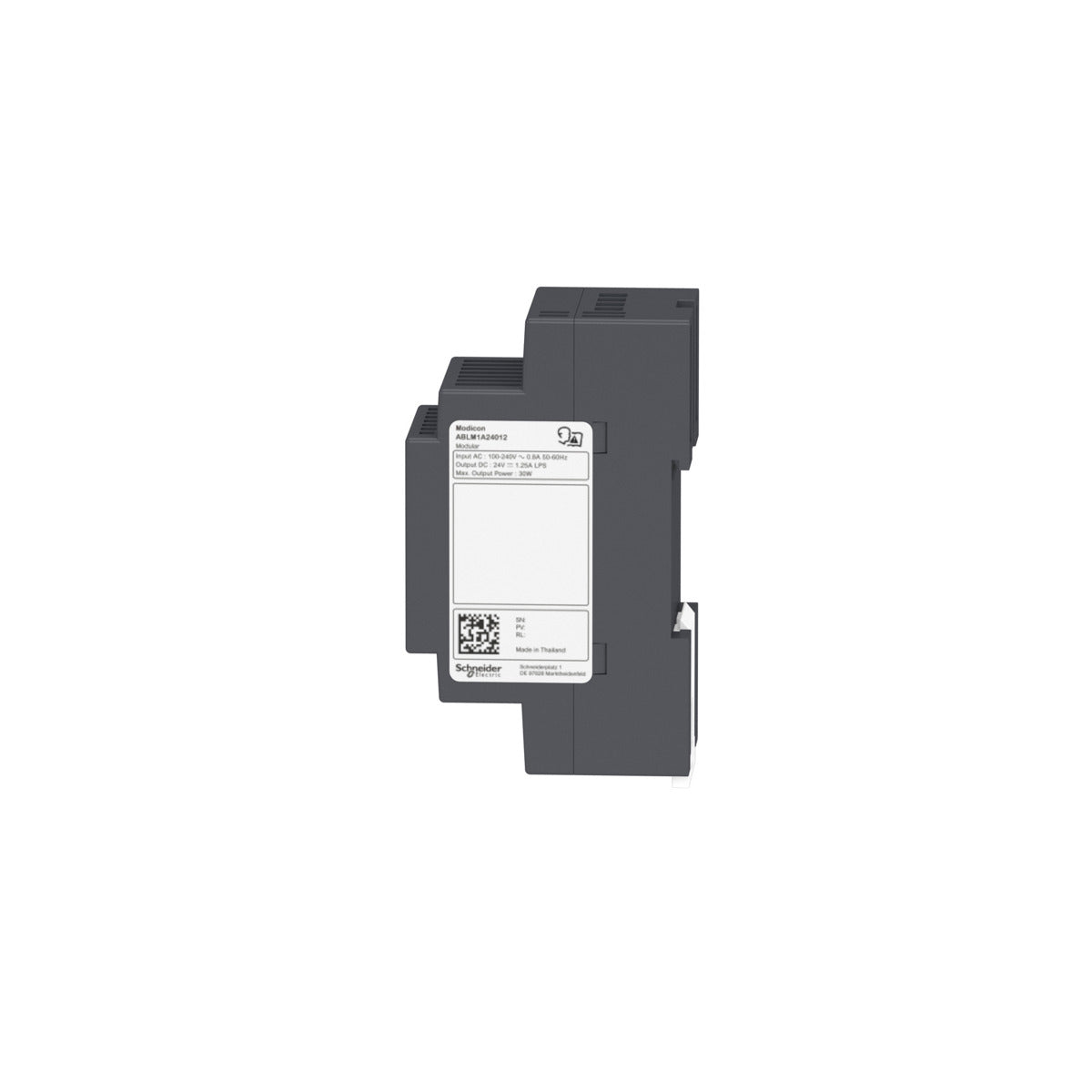

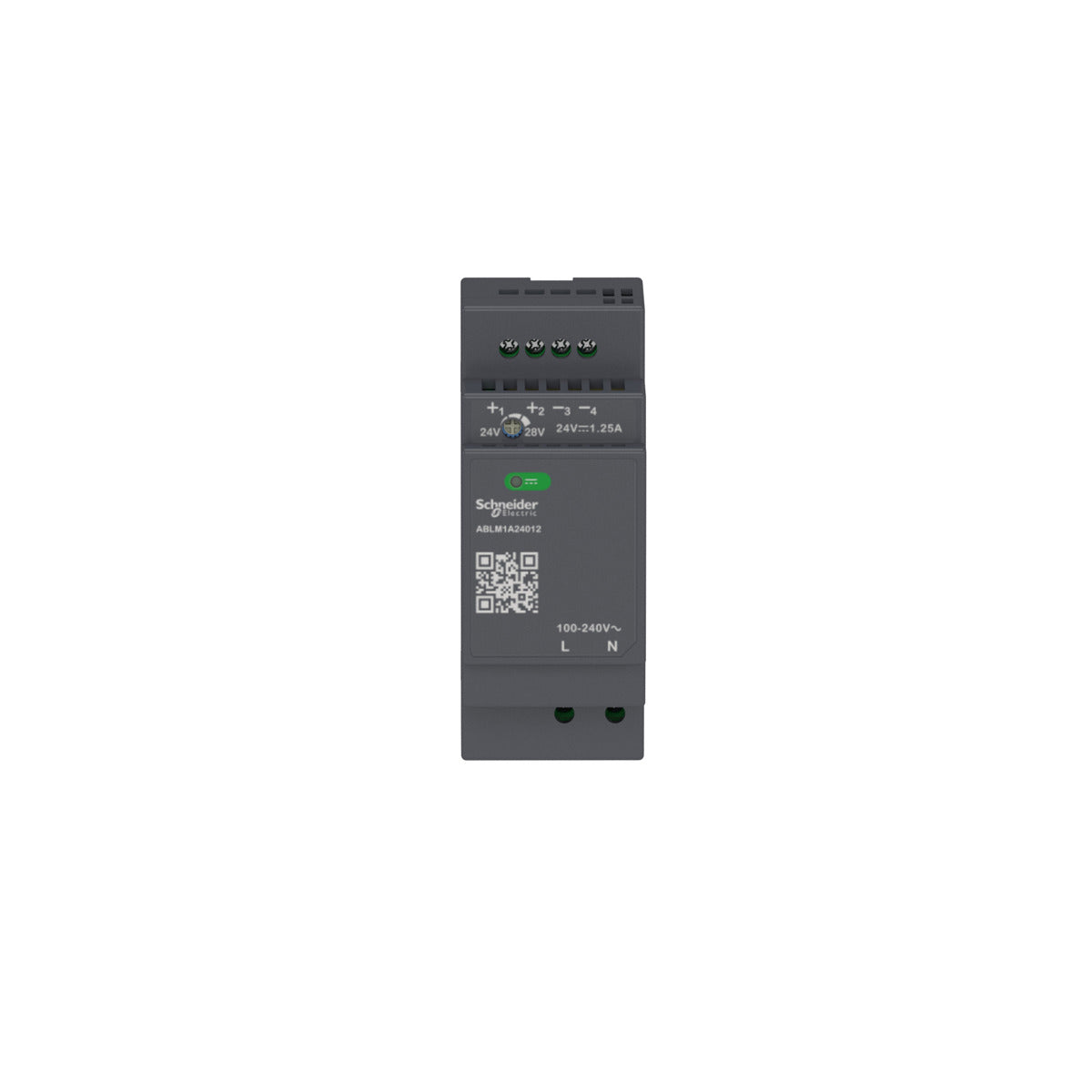

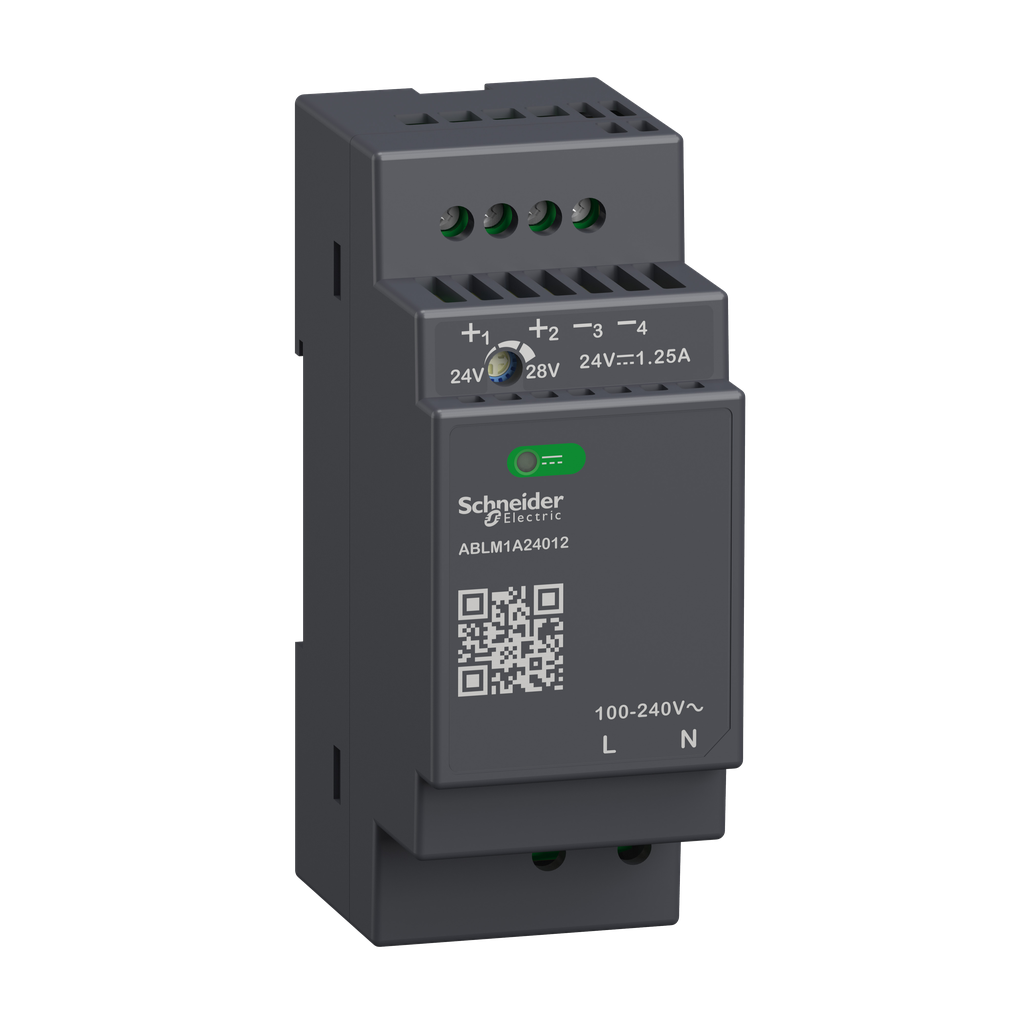

Schneider Electric ABLM1A24012 Regulated Power Supply 100 to 240V AC 24V 1.2A Modular

Product Description

The Schneider Electric ABLM1A24012 is a regulated switch mode power supply that offers a direct current voltage output. It operates within a range of 100V to 240V AC and provides an output current of 1.25A at 24V DC, with a total power output of 30W. This power supply is essential for automation equipment used in sectors such as industrial, commercial, and residential applications. It can be used in various scenarios including conveying, packaging, control systems, food and beverage production, mining, and oil and gas operations.

This unit can be mounted on omega rail or secured with screws. With physical dimensions of thirty-six millimeters in width, ninety-one millimeters in height, and fifty-five point six millimeters in depth, this unit is compact yet effective. The ABLM1A24012 includes features for overload and short-circuit protection with automatic reset once the source is corrected. A weight of zero point one seventy kg ensures it is manageable for installations.

• Input Voltage: 100V to 240V AC
• Output Voltage: 24V DC
• Protection against overloads and short-circuits

Product Highlights

This power supply is recognized for its modular design, allowing easy installation in diverse settings, and is equipped with a LED indicator to show DC output presence.

Product Information

Standard Information

• Catalog Number: ABLM1A24012
• Manufacturer: Schneider Electric

Technical Specifications

• Input Voltage: 100V to 240V AC
• Output Voltage: 24V DC
• Rated Current: 1.25A
• Rated Power: 30W
• Efficiency: 87% at 115V AC, 87% at 230V AC
• Weight: 0.170 kg
• Height: 91 mm
• Width: 36 mm
• Depth: 55.6 mm
• Certifications: CE, CUL Listed, RCM, CB Scheme
