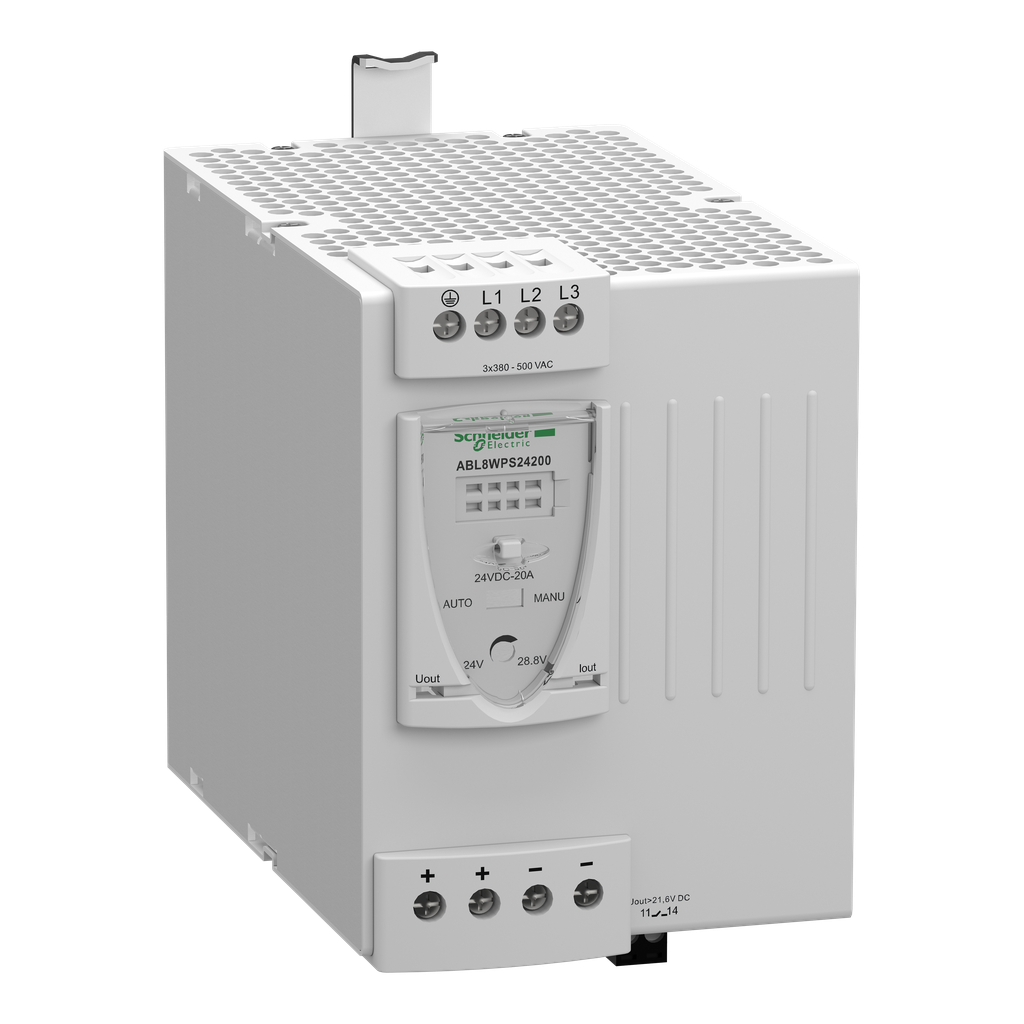

Schneider Electric ABL8WPS24200 Square D 380 to 500 VAC Input 24 VDC Output 20 Amp 1-Phase Switch Mode Power Supply

Product Description

This Schneider Electric ABL8WPS24200 is a regulated switch mode power supply. It provides direct current voltage with a rated input of three hundred eighty volts to five hundred volts AC. The rated output current is twenty amps at twenty-four volts DC, delivering a total power output of four hundred eighty watts. This power supply is suitable for automation equipment in various industrial, commercial, and residential applications, including conveying, packaging, control, food and beverage, mining, oil and gas, and water management.

Key features include:

• Automatic reset capability for short-term faults.
• LED diagnostics for quick troubleshooting.
• Power reserve of 150% for inrush current management.

Product Highlights

The power supply installs easily on a DIN rail and is just ninety-five millimeters wide. It meets CSA C22.2 No 60950-1 and UL 508 standards and is certified with CCSAus, EAC, UL, and RCM. For protection, the GV2ME06 thermal magnetic circuit breaker is recommended. This modular design offers compactness and efficiency, ideal for simple machines.

Product Information

Standard Information

• Catalog Number: ABL8WPS24200
• Brand: Schneider Electric

Technical Specifications

• Type: Regulated switch mode power supply
• Input Voltage: 380-500 V
• Output Voltage: 24 V
• Max Output Current: 20 A
• Rated Power: 480 W
• Operating Temperature: -25 to 60 degrees C with derating factor
• Storage Temperature: -40 to 70 degrees C
• Efficiency: 92%
