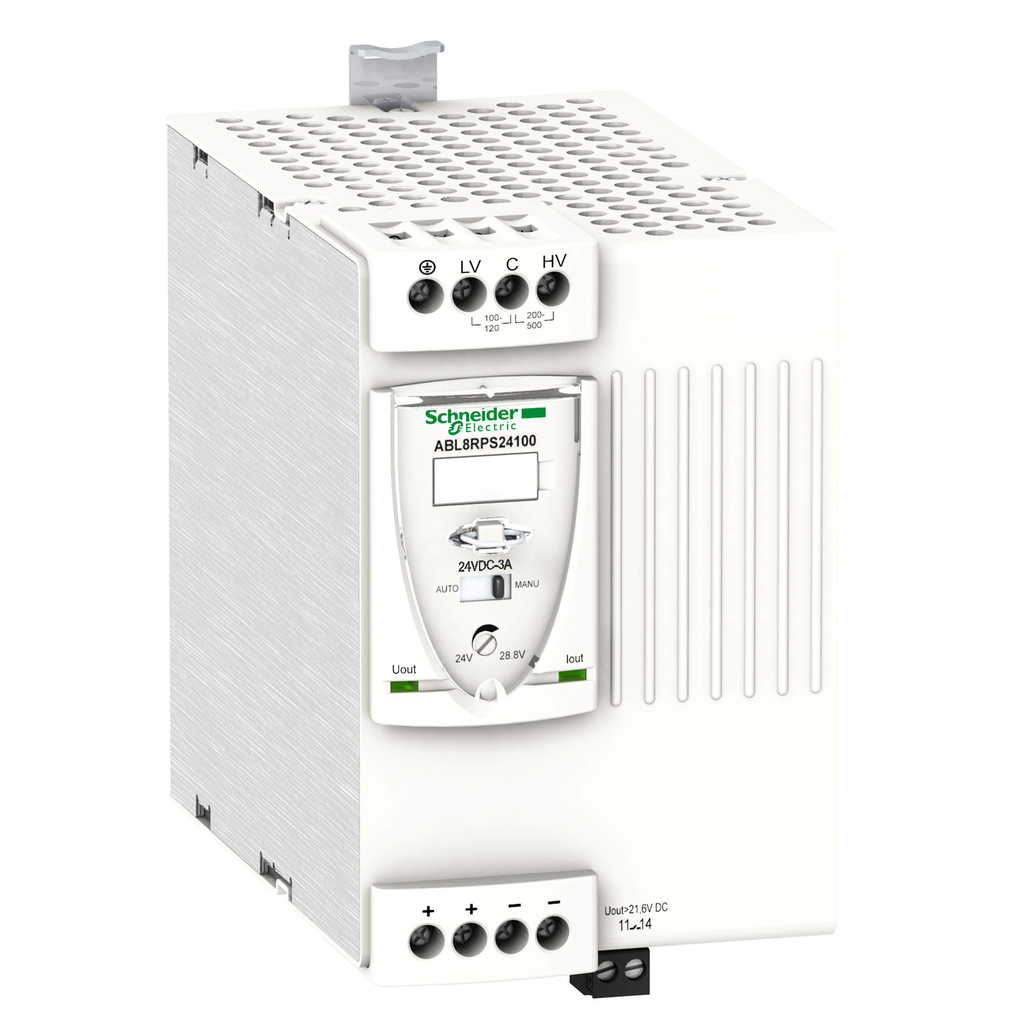

Schneider Electric ABL8RPS24100 200 to 500 VAC Input 24 VDC Output 10 Amp 1-Phase Switch Mode Power Supply

Product Description

The Schneider Electric ABL8RPS24100 is a regulated switch mode power supply. It provides direct current voltage with an input range of 100 to 500 volts AC. The output current is rated at 10 amps at 24 volts DC, providing a total output power of 240 watts.

• Automatic reset feature for short-term faults
• LED diagnostics for easy troubleshooting

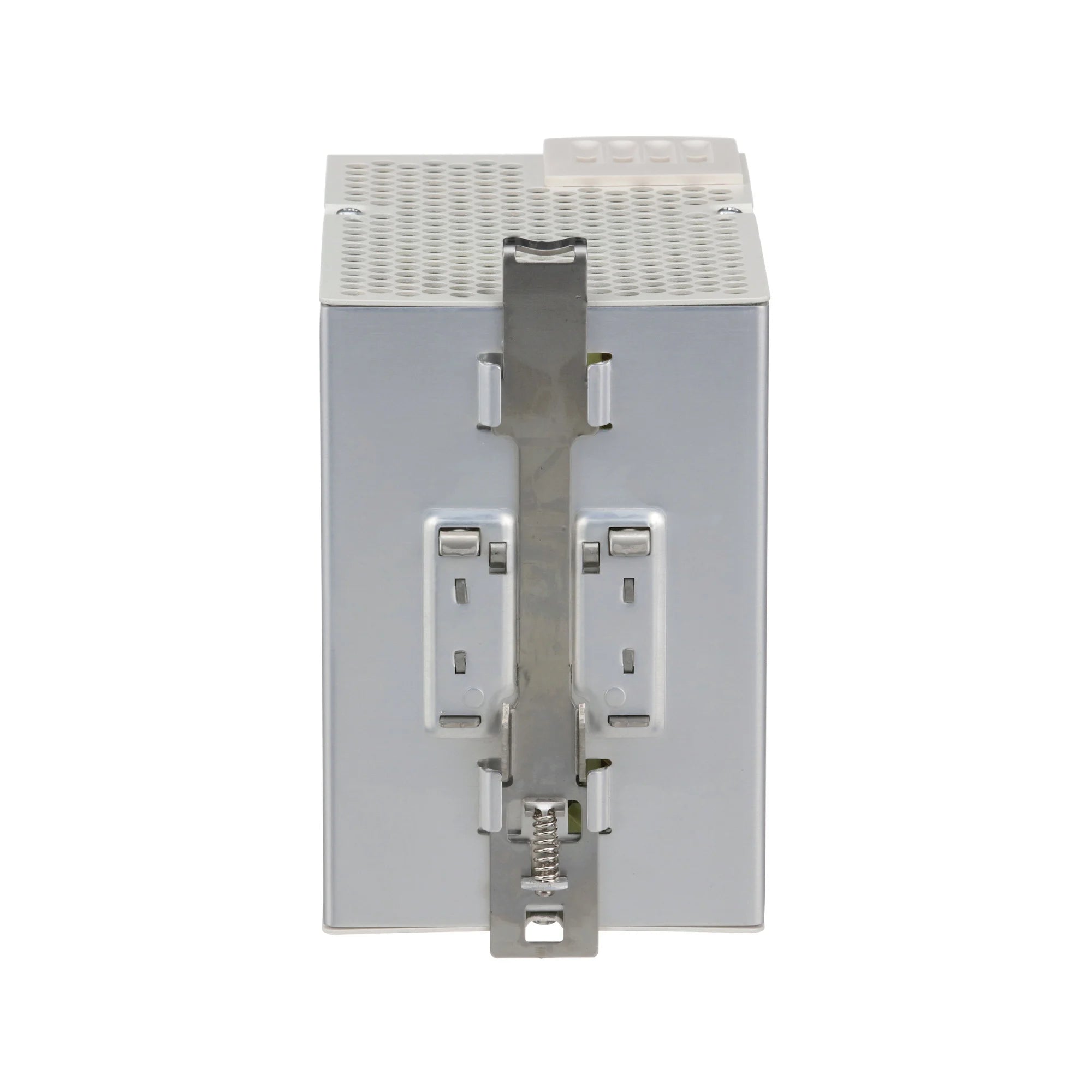

• DIN rail installation at 85 millimeters wide

Product Highlights

This power supply is designed for industrial applications and can be mounted directly to a panel. It includes a Power Factor Correction filter to enhance efficiency.

Product Information

Standard Information

• Brand: Schneider Electric
• MasterSKU: 1bb4c0b2-367a-47e0-bd1b-c5f3943cb760

Technical Specifications

• Catalog Number: ABL8RPS24100
• Input Voltage: 100-500 volts AC
• Output Voltage: 24 volts DC
• Output Current: 10 amps
• Rated Power: 240 watts
• Dimensions: 5.71 inches x 3.39 inches x 4.92 inches
• Weight: 2.20 pounds
• Efficiency: 87%
