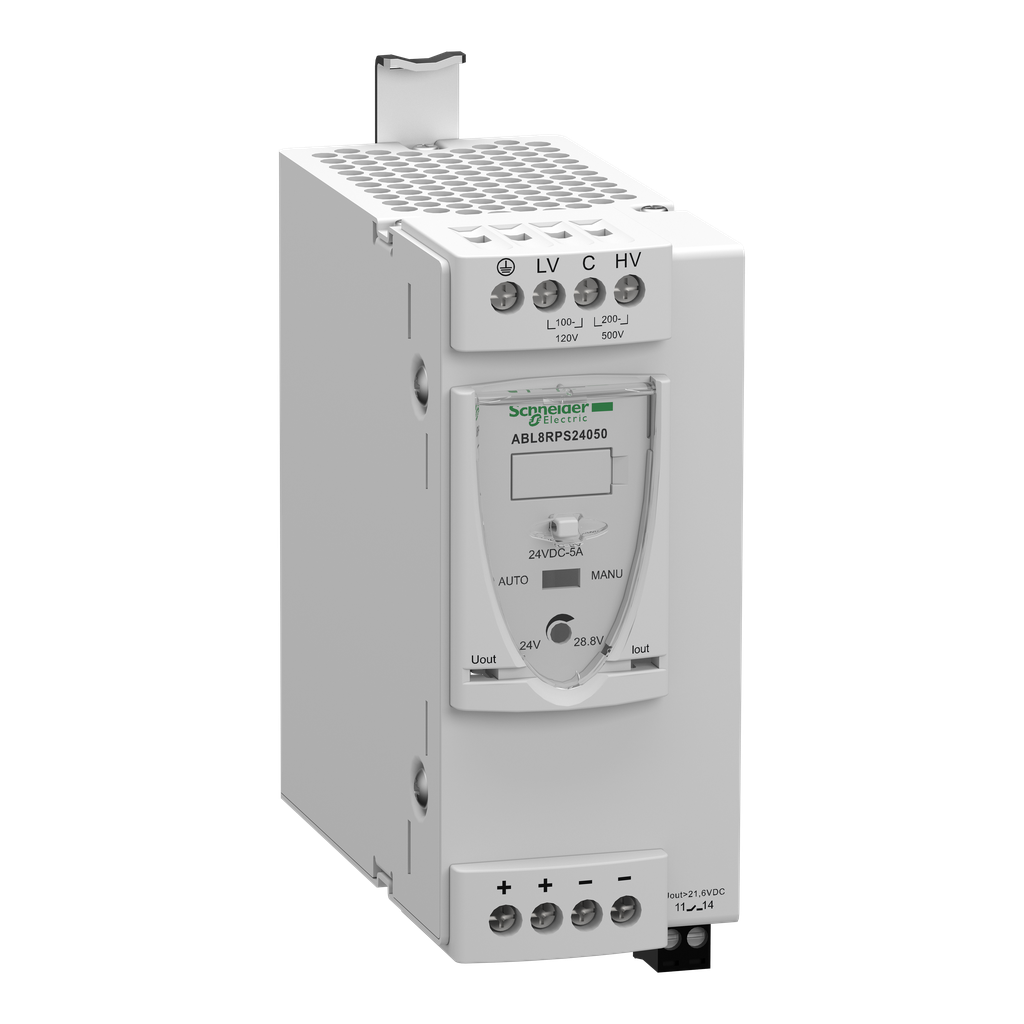

Schneider Electric ABL8RPS24050 200 To 500 Vac Input 24 Vdc Output 5 Amp 1-Phase Switch Mode Power Supply

Product Description

The Schneider Electric ABL8RPS24050 is a regulated switch mode power supply that provides reliable direct current voltage. This power supply accepts input voltages ranging from 100 to 500 volts AC. It delivers a consistent output of 24 volts DC at a maximum current of 5 amps, offering a total power output of 120 watts.

• Input Voltage: 100-500 VAC
• Output Voltage: 24 VDC at 5A
• Compact design mounts on DIN rail

Product Highlights

This power supply features automatic reset capabilities for short circuit protection, ensuring minimal disruption during operation. The unit includes an integrated power factor correction (PFC) filter and LED diagnostics for easy troubleshooting. It is suitable for various industrial applications and complies with multiple standards including UL 508 and CSA C22.2 No 60950-1.

Product Information

Standard Information

• Catalog Number: ABL8RPS24050
• Brand: Schneider Electric

Technical Specifications

• Input Voltage: 100-500 VAC
• Output Voltage: 24 VDC
• Output Current: 5 A
• Rated Power Output: 120 W
• Weight: 0.7 kg
• Width: 56 mm
• Height: 143 mm
• Depth: 125 mm
