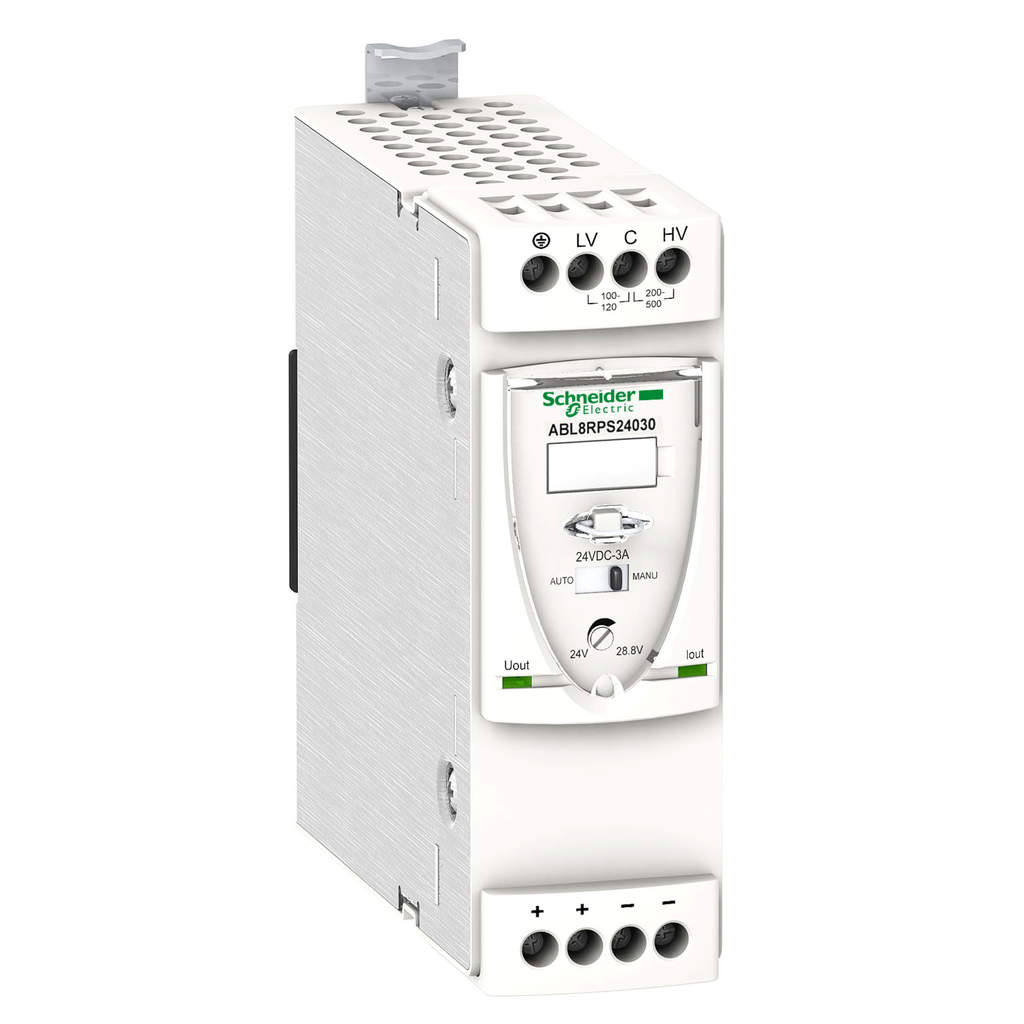

Schneider Electric ABL8RPS24030 Square D 200 to 500 VAC Input 24 VDC Output 3 Amp Switch Mode Power Supply

Product Description

The Schneider Electric ABL8RPS24030 is a regulated switch mode power supply (SMPS) designed for delivering direct current voltage. It operates with an input voltage range of one hundred to five hundred volts AC, providing a steady output current of three amps at twenty-four volts DC. The power output is rated at seventy-two watts, making it suitable for various industrial applications.

• Input voltage: One hundred to five hundred volts AC
• Output current: Three amps at twenty-four volts DC
• Compact size: DIN rail mountable and only forty-four millimeters wide

Product Highlights

This power supply features an automatic reset function which allows it to recover from short-term faults without intervention. Its design includes Power Factor Correction (PFC) and an LED diagnostics indicator for easy troubleshooting. It can be directly mounted to a panel, ensuring versatility in installation.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: ABL8RPS24030
• Input Voltage: 100 to 500 VAC
• Output Voltage: 24 VDC
• Max Output Current: 3 A
• Rated Power: 72 W
• Efficiency: 87%
• Dimensions: 4.92 inches length, 125 mm depth, 45 mm width
• Weight: 0.66 lb
• Country of Origin: Philippines
• Warranty Length: 18 months
