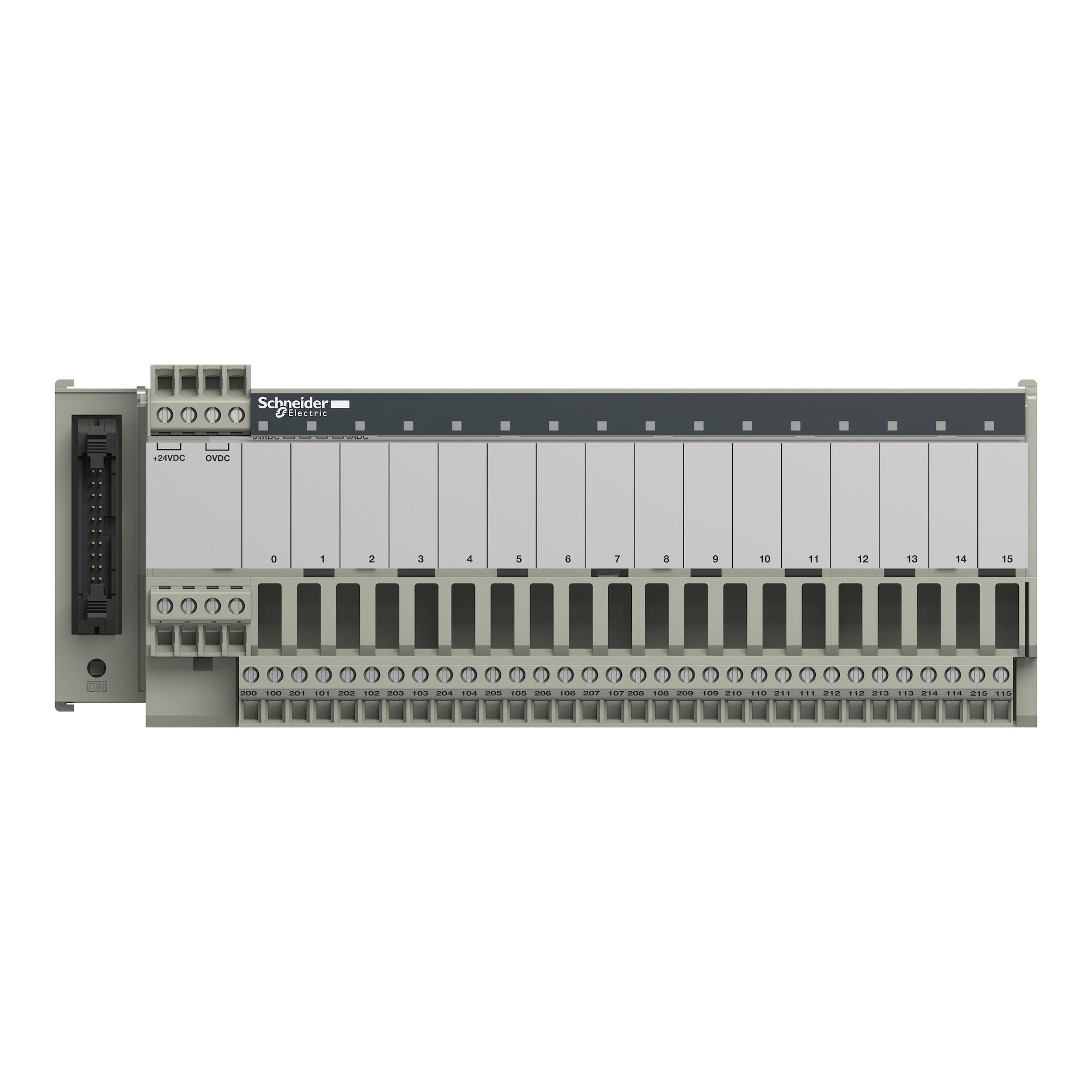

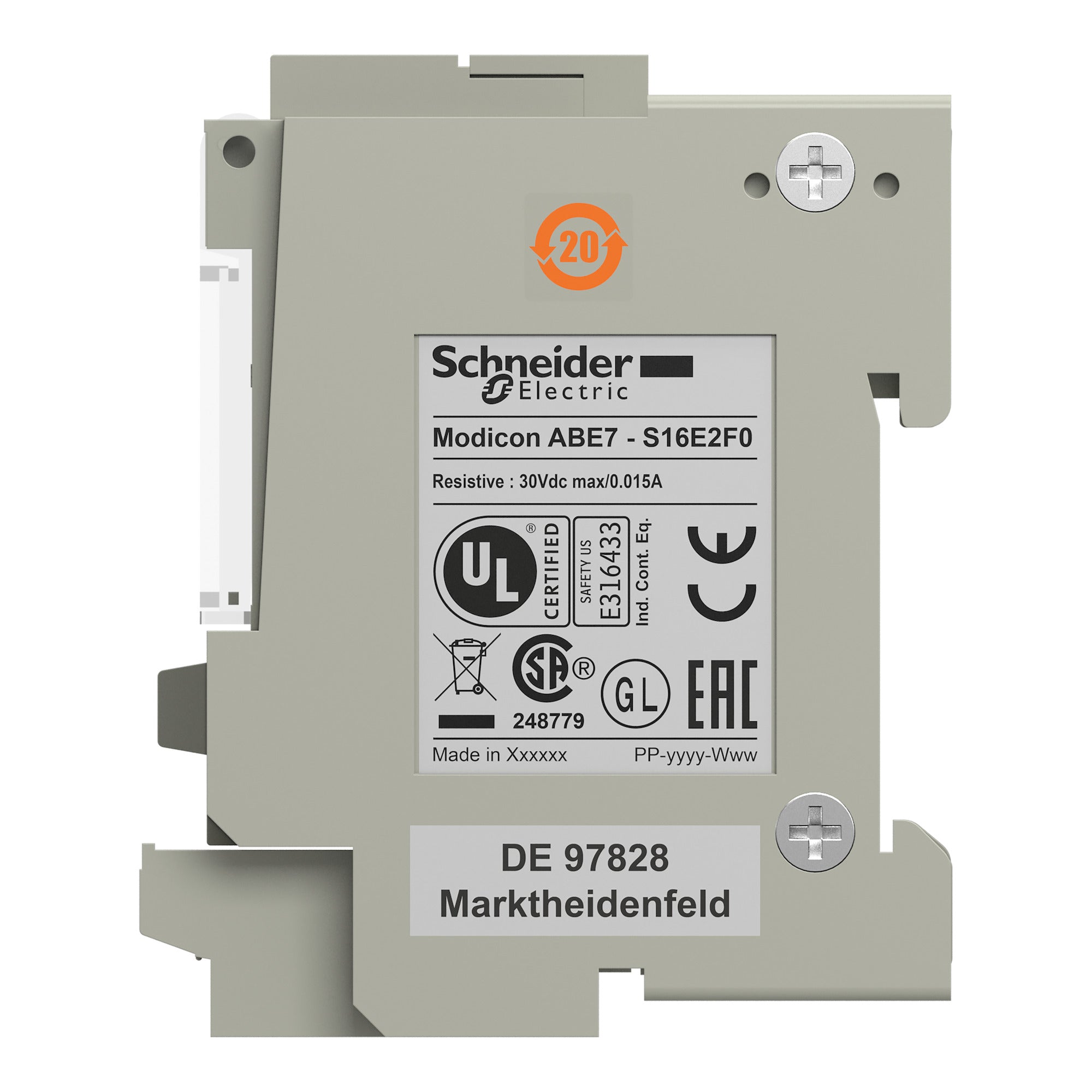

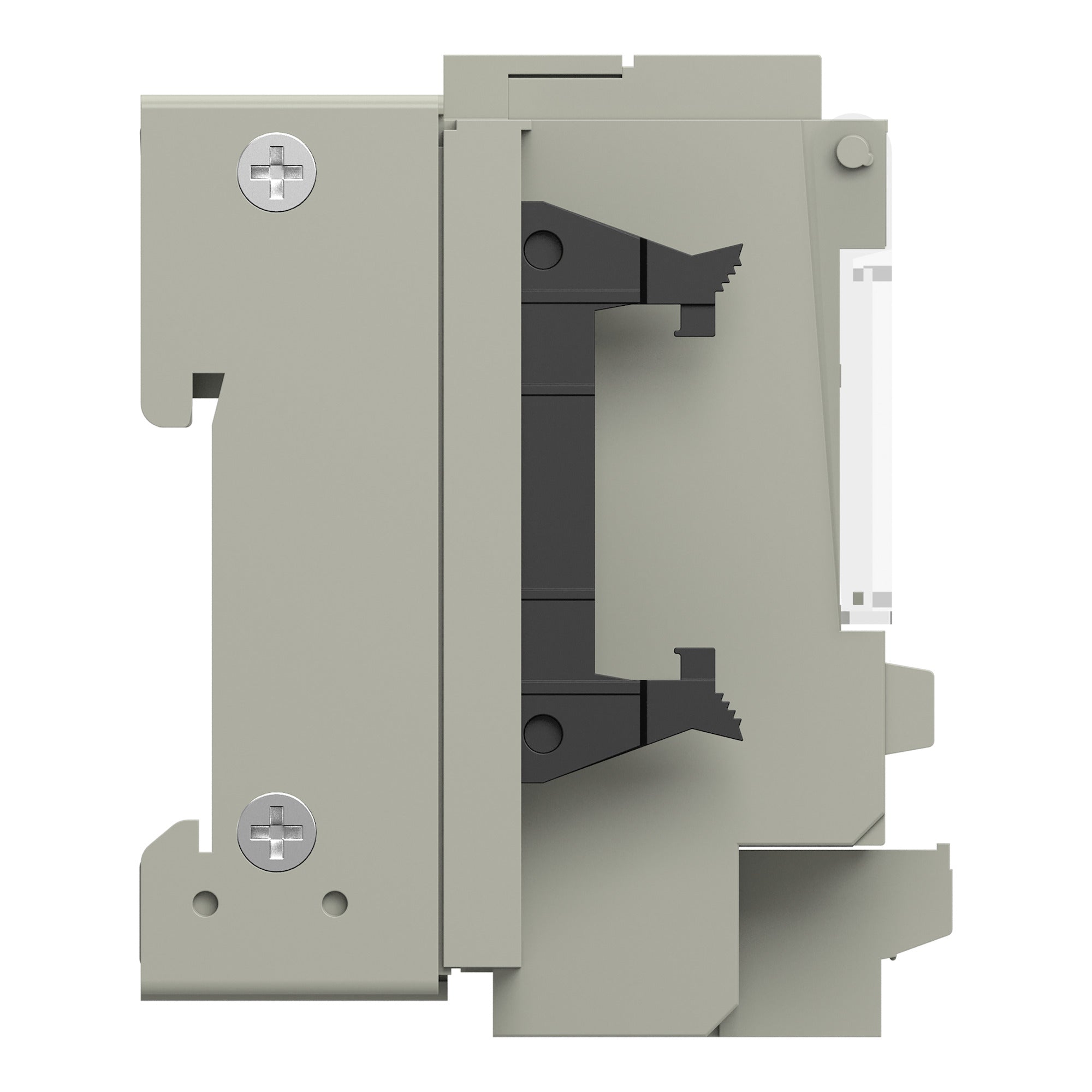

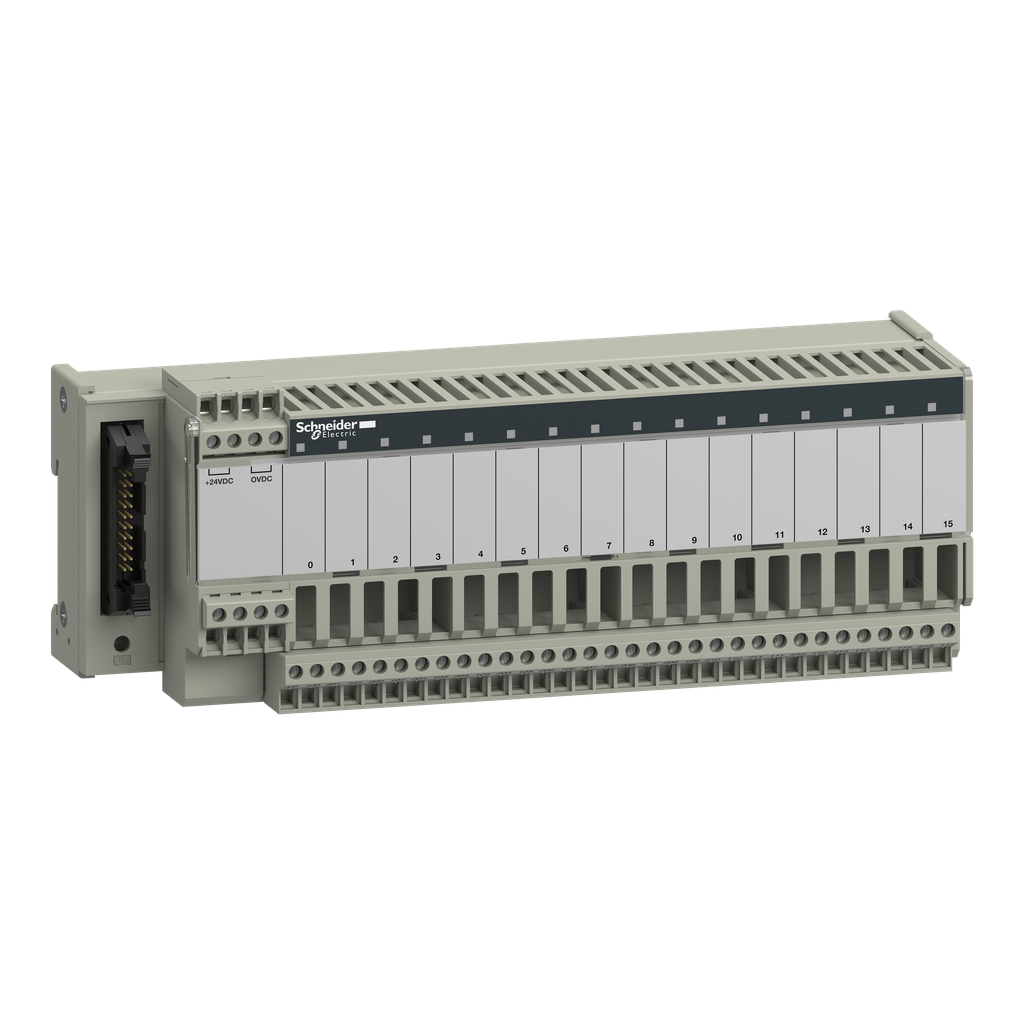

Schneider Electric ABE7S16E2F0 Square D 16-Channel Screw Terminal Input Sub Base Replacement MPN

Product Description

Schneider Electric ABE7S16E2F0 is part of the Modicon ABE7 range. It includes connection sub bases for the Telefast pre-wired system. This sub base supports 16 channels with two terminals each. It features a rated supply voltage of 110V/130V AC for the sensor end and 24V DC for the PLC end. The sub base comes with screw type terminals, contributing to reliable electrical connections.

• Fourteen channels with two terminals per channel
• Rated supply voltage of 110V to 130V AC
• IP2x rated for safety

Product Highlights

Utilized in various industrial applications, this device is ideal for simplifying wiring in automation equipment. Its compact design enables effective adaptation of control signals.

Product Information

Standard Information

• Catalog Number: ABE7S16E2F0
• Manufacturer: Schneider Electric

Technical Specifications

• Dimensions: 206 mm width, 58 mm depth, 77 mm height
• Weight: 0.397 kg
• Number of Channels: 16
• Power Supply: 110V/130V AC sensor end, 24V DC PLC end
• Response Time: Less than or equal to 20 ms from state 0 to 1 and from state 1 to 0
• Operating Temperature: -5 to 60 degrees Celsius
• Certificates: CSA, UL, DNV, GL, EAC
