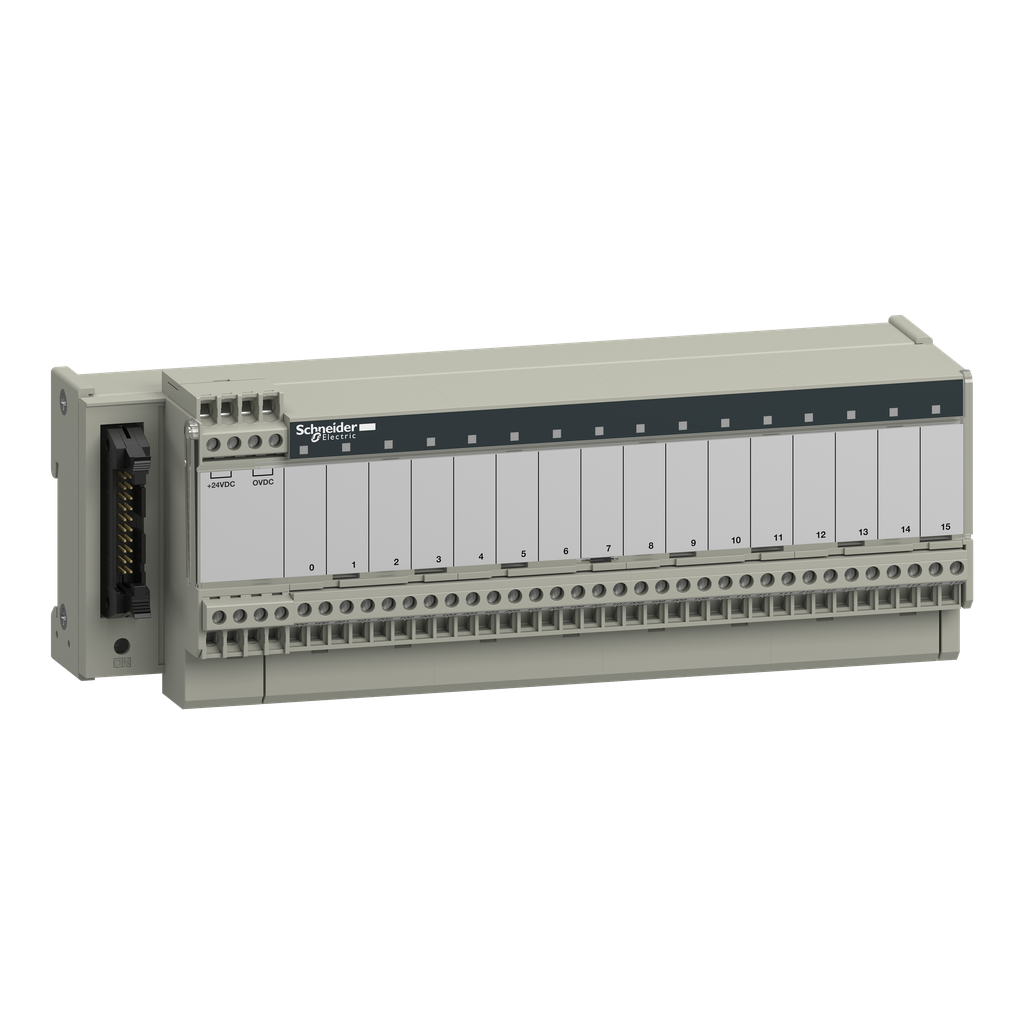

Schneider Electric ABE7R16S210 Sub-Base 16-Channel Relay 24V DC

Product Description

Schneider Electric ABE7R16S210 is a sub-base designed for quick connections in automation systems. This model provides sixteen channels with soldered electromechanical relay contacts. It is equipped for a supply voltage of 24V DC and can handle a maximum current of ten amperes per output. It features IP2x protection and offers high electrical durability, rated for approximately five hundred thousand operating cycles. Suitable for various industrial applications, its compact design facilitates mounting on a standard DIN rail.

• Supports 16 channels for extensive connectivity.
• Rated for 24 volts DC with a maximum output of 10 amperes.
• Durable design ensures long operational life.

Product Highlights

This sub-base aids in simplifying and streamlining I/O module connections within PLC systems.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Warranty Length: 18 months

Technical Specifications

• Catalog Number: ABE7R16S210
• Dimensions: 206 mm width
• Weight: 0.405 kg
• Operating Temperature: -5 to 60 degrees Celsius
• Power Supply: 24 V DC
• Number of Channels: 16
• Certifications: GL, CSA, DNV, BV, LROS, UL
• Country of Origin: France
