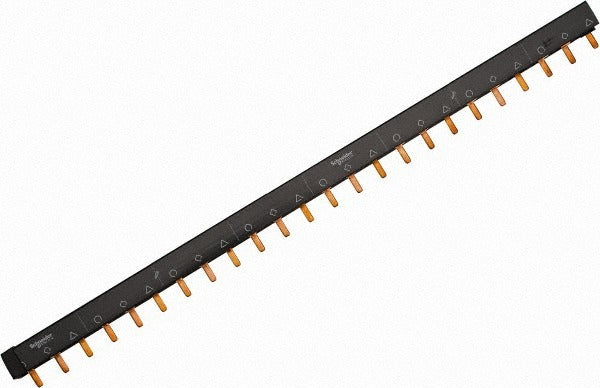

Schneider Electric A9XPH324 Combination Busbar 100A 415V

Product Description

The SCHNEIDER ELECTRIC A9XPH324 is a combination busbar rated for 100 amps and 415 volts AC, designed as an accessory for C60 series circuit breakers. This busbar provides a compact, organized method of connecting multiple circuit breakers to a common power feed within a distribution enclosure or panel assembly. Weighing 0.5 pounds and measuring 16.8 inches in length, it is built for efficient installation in tight electrical panel layouts. Licensed electricians and panel builders working on commercial or light industrial power distribution systems will encounter this type of component during board assembly, upgrades, or retrofits.

This combination busbar is suited for use in electrical distribution panels and load centers where C60 circuit breakers are installed. It supports organized, reliable multi-breaker connections in both new construction and retrofit applications. The busbar is appropriate for commercial and light industrial environments where 415 VAC distribution systems are in use. Its compact profile allows it to fit within standard enclosure footprints alongside compatible breaker assemblies.

Key Features

• Rated for 100 amps continuous current capacity
• 415 VAC control voltage rating suitable for commercial distribution applications
• Designed specifically for use with C60 series circuit breakers
• Compact dimensions: 16.8 inches length, 1.2 inches width, 0.6 inches height
• Lightweight construction at 0.5 pounds for ease of handling during panel assembly

Compatibility

Designed for use with C60 circuit breakers as specified by the manufacturer. Verify breaker series and panel configuration before installation to confirm fitment.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements and local electrical codes. De-energize and lockout the panel before beginning any busbar installation or replacement work. Confirm that the breaker slots and enclosure are compatible with the busbar dimensions prior to mounting. Do not exceed the rated amperage or voltage limits of this component.
