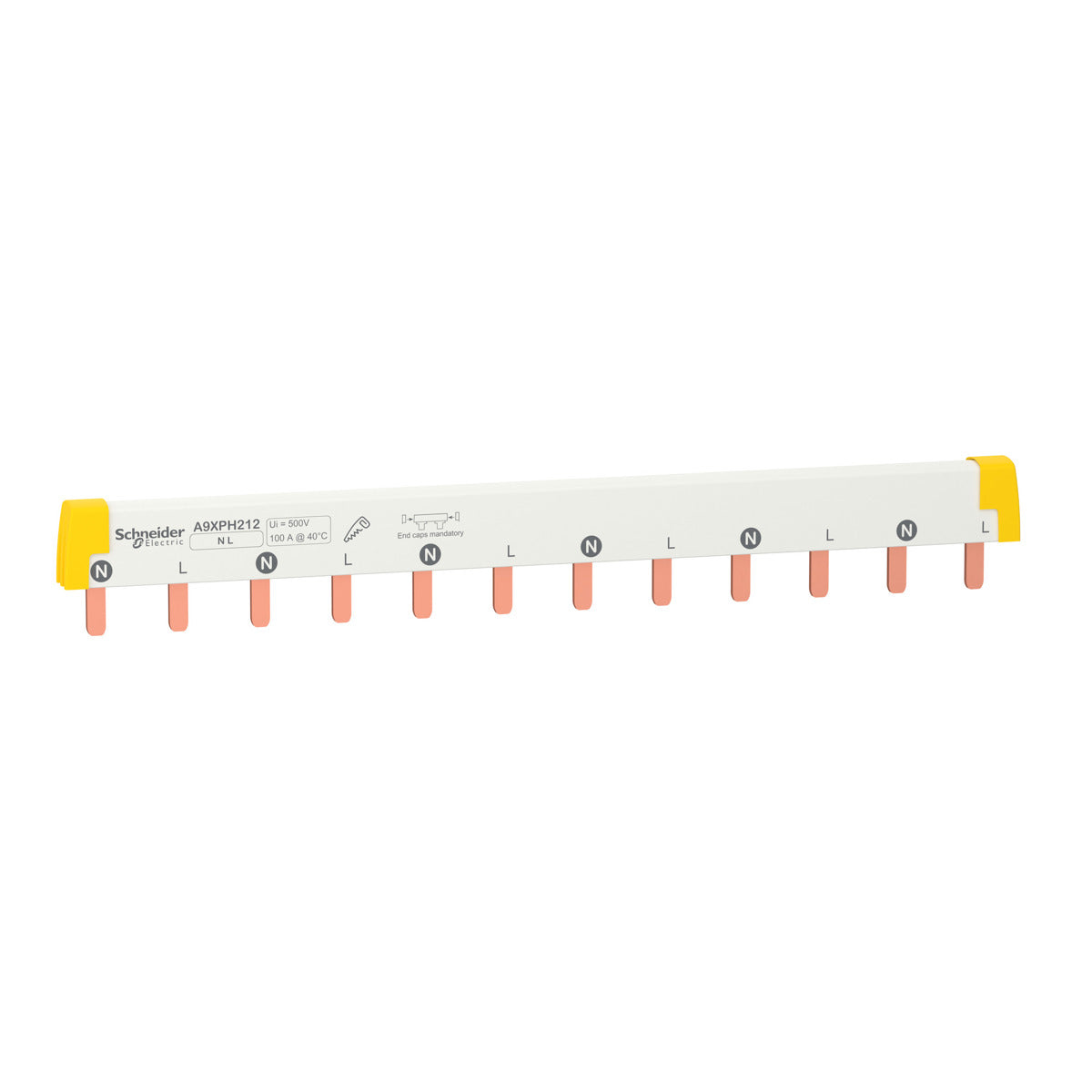

Schneider Electric A9XPH212 Acti9 - comb busbar - 1L+N - 18 mm pitch - 12 modules - 100 A

Product Description

Schneider Electric offers the A9XPH212 Acti9 comb busbar, designed for N+1L installations. This product supports up to 12 modules in a horizontal arrangement and is compatible with Acti9 iC60 and iK60 devices. It enables efficient power distribution for various electrical applications.

• Cuttable horizontal design offers flexibility in installation.
• Suitable for six devices with one-phase connection.
• Meets IEC standards for safety and reliability.

Product Highlights

This busbar is ideal for residential and commercial electrical systems, providing reliable connections and ease of use.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: A9XPH212

Technical Specifications

• Length: 220 mm
• Number of Modules: 12
• Pin Cross Section: 16 mm²
• Rated Operational Current: 100 A at 40°C
• Rated Insulation Voltage: 500 VAC
• Rated Operational Voltage: 415 VAC
• Pollution Degree: 3
• Fire Resistance: Self-extinguishing at 960°C within 30s
