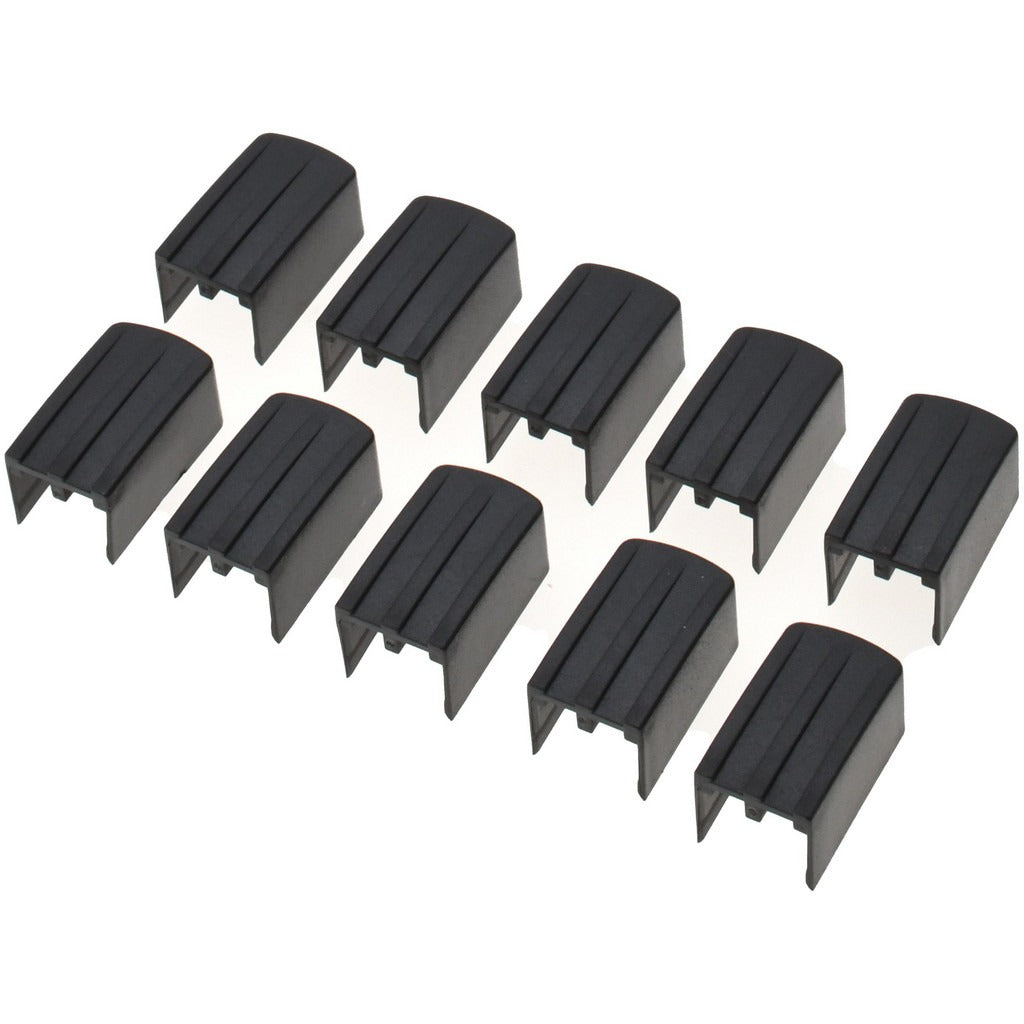

Schneider Electric A9XPE210 Circuit Breaker End Cap

Product Description

The SCHNEIDER ELECTRIC A9XPE210 is a 2-pole circuit breaker end cap designed to terminate and protect comb busbar assemblies in panelboard and distribution board applications. This end cap fits C60 comb busbars and provides a finished, insulated termination point that helps prevent accidental contact with live busbar conductors. At 0.02 pounds, it is a lightweight plastic component that electricians install during initial panelboard assembly or service work when replacing or extending comb busbar runs.

This end cap is used in residential and light commercial electrical distribution applications where C60 comb busbars are employed to feed multiple circuit breakers from a common bus. It is typically installed inside load centers, distribution boards, or sub-panels at the open end of a comb busbar to cap off unused busbar conductors and maintain a safe, organized wiring compartment.

Key Features

• Terminates 2-pole C60 comb busbar assemblies with a secure, insulating end cap
• Prevents accidental contact with exposed live busbar conductors
• Lightweight construction at 0.02 pounds for easy handling during panel assembly
• Compact profile measuring 4 inches in length, 2 inches in width, and 0.2 inches in height
• UNSPSC Code 39121529 for streamlined procurement and cataloging

Compatibility

Designed for use with C60 comb busbars as specified by the manufacturer.

Installation Notes

Installation is performed by a licensed electrician. De-energize and lock out the panelboard or distribution board before working on any busbar assembly, following NFPA 70E lockout/tagout procedures. Snap or press the end cap firmly onto the open end of the comb busbar until fully seated before restoring power. Do not modify or cut the end cap, as doing so compromises insulation integrity.
