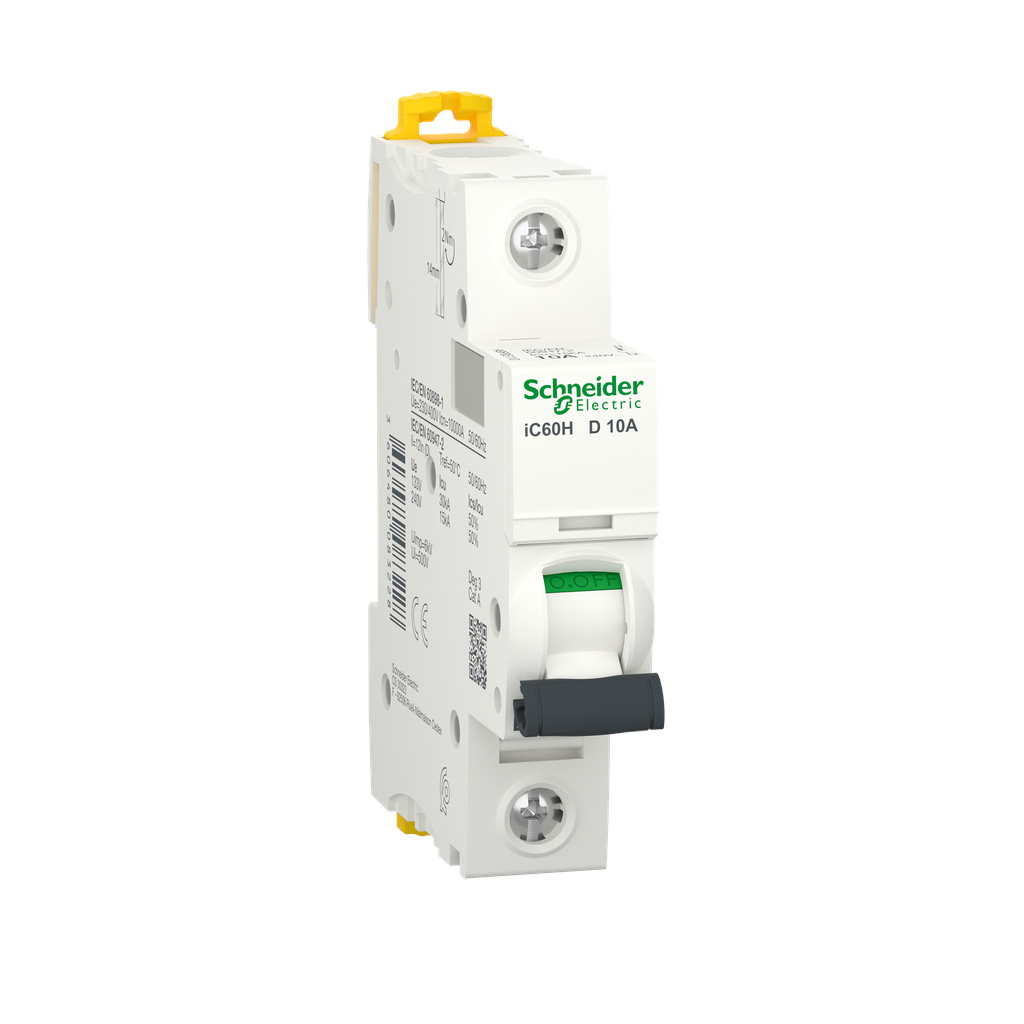

Schneider Electric A9F85110 SQD A9F85110 Acti9 IC60H 1P 10A D

Product Description

This Schneider Electric A9F85110 Acti9 iC60H is a miniature circuit breaker designed for protecting electrical circuits. It is ideal for preventing short circuits and overload currents across various applications. The device features a one-pole design with a rating of 10A, complying with both industrial and residential standards. This version has a fast closing mechanism that enhances service life and efficiency.

• 1P circuit breaker with 10A rated current
• Rated breaking capacity up to 15kA at 220VAC
• Electrical endurance up to 10,000 cycles

Product Highlights

The Acti9 iC60H comes equipped with a VisiTrip indicator for quick fault identification and a VisiSafe green strip to ensure safe maintenance procedures. Designed for easy installation, this circuit breaker can be clipped onto a DIN rail.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: A9F85110
• Cooper Electric Part Number: 1182254
• Width: 18 mm
• Height: 85 mm
• Depth: 78.5 mm
• Weight: 0.215 kg
• Rated Insulation Voltage: 500 VAC
• IP Rating: IP20
