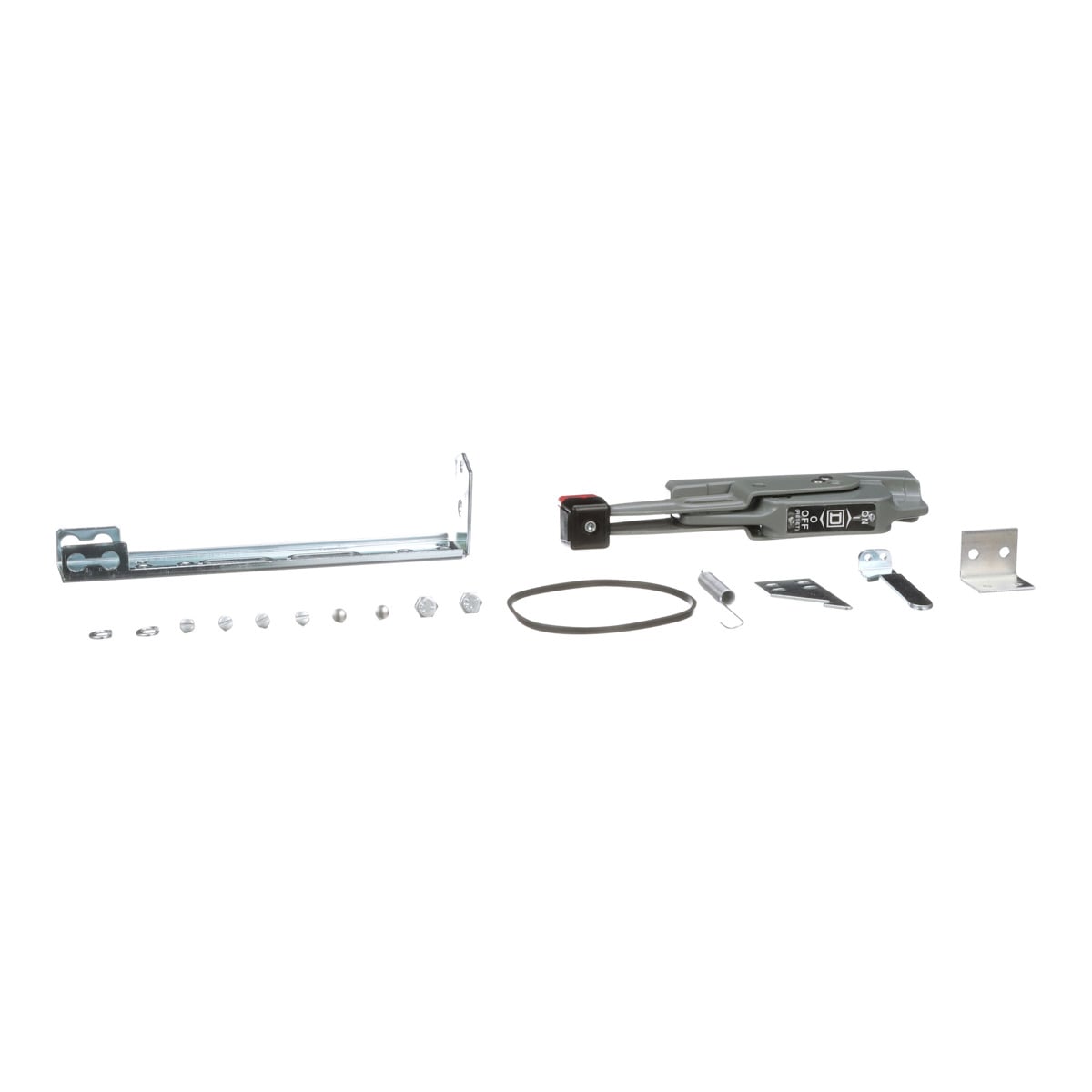

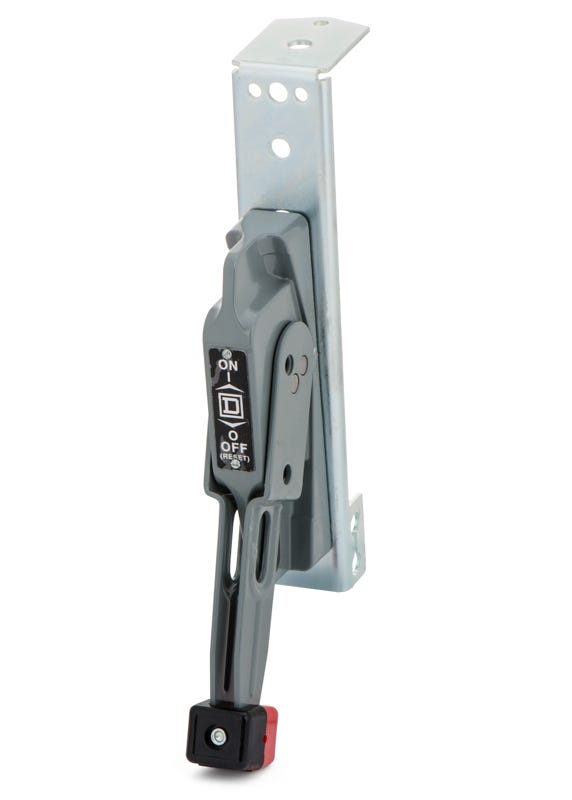

Schneider Electric 9422A1 Operating Mechanism Flange Mounted Variable Depth Handle Mechanism 6in Handle 30-200A

Product Description

SCHNEIDER ELECTRIC 9422A1 is an operating mechanism designed for flange-mounted, variable depth applications. It features a handle mechanism with a 6-inch handle and is rated for NEMA 1, 3R, 4, 12 enclosures. This mechanism is compatible with disconnect switches and circuit breaker installations, supporting 30 to 200 A switches. It provides flexible mounting options for control panel setups.

• Flange mounted design for secure installation.
• Variable depth for flexible application in various enclosures.
• Equipped with a 6-inch handle mechanism for manual operation.

Product Highlights

Flange-mounted, variable depth operating mechanism with a 6-inch handle, suitable for 30-200A disconnect switches and circuit breakers in NEMA 1, 3R, 4, 12 enclosures.

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: 9422A1
• Country of Origin: United States

Technical Specifications

• Type: Operating mechanism
• Mounting: Flange mounted
• Depth: Variable
• Mechanism: Handle
• Handle Size: 6 inches
• Enclosure Rating: NEMA 1, 3R, 4, 12
• Series: 9422A
• Mounting Position: Flange Handle
• Compatibility: 30 to 200 A Switches and All CB Mechanism
• Current Rating: 30-200 Amps
• Frame Type: L, B
• Accessory Type: Switch Disconnector
• Product Range: 9421L Series
• Environmental Compliance: RoHS Compliant
• Country of Origin: United States
