Schneider Electric 9080GF6 Terminal Block Linergy Sectional Fuse Holder 30A 600V (2 Position) 9080-GF-6

Product Description

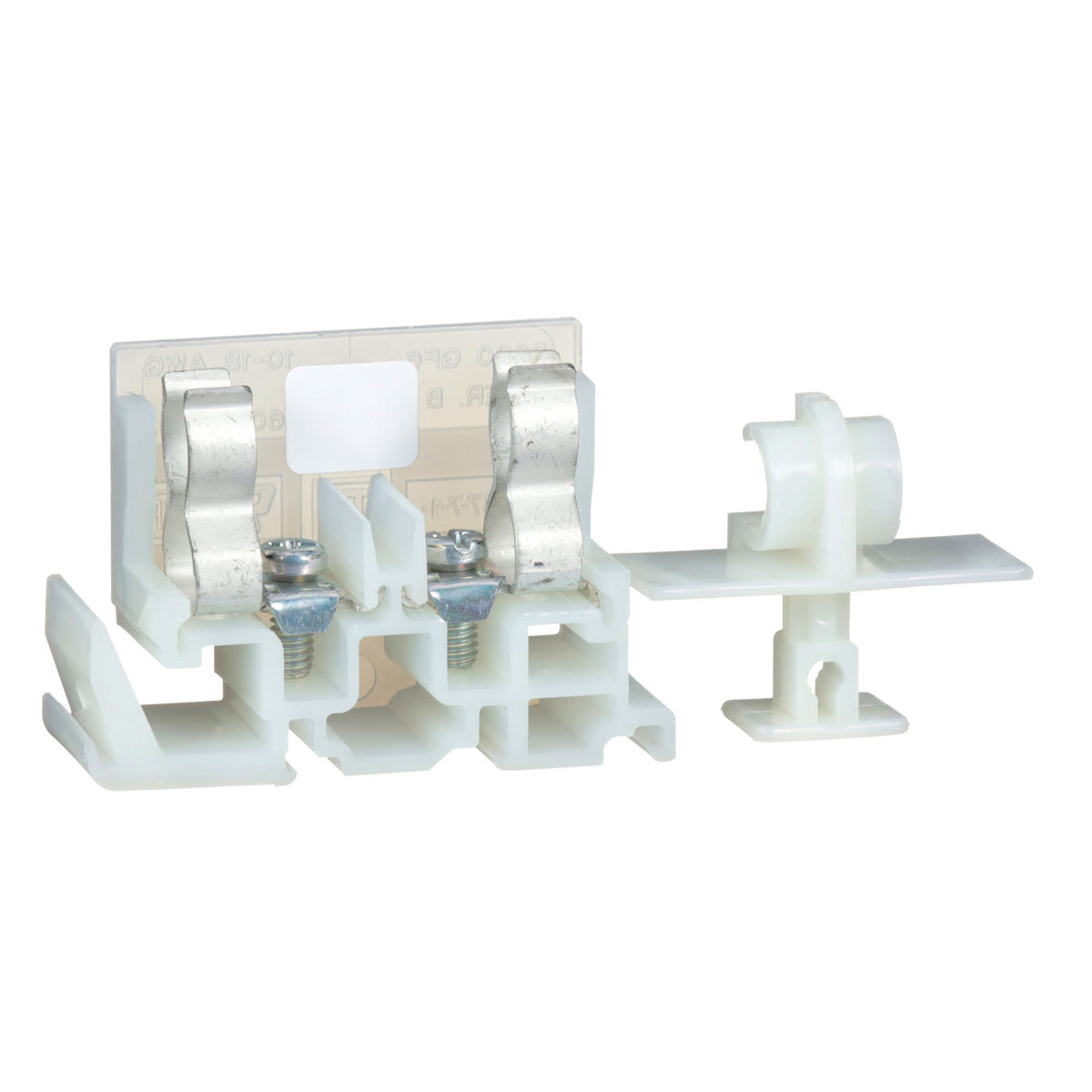

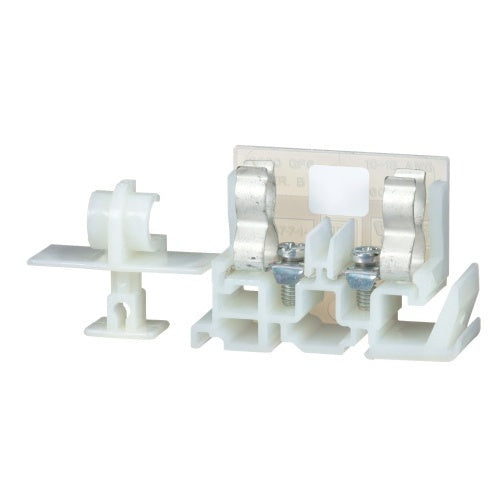

Schneider Electric 9080GF6 is a Linergy terminal block sectional fuse holder rated 30 A and 600 V. It provides two-position screw termination for fuse disconnects and accepts AWG 18 to AWG 10 copper conductors using a pressure wire clamp. The nylon body with tin-plated copper busbar mounts to a 35 mm DIN rail and includes fingersafe protection to DIN 57470; operating range is -40 to 105 °C.

• Rated current 30 A and voltage 600 V (AC/DC); UL and CSA recognized ratings
• Two-position fuse disconnect with screw termination; accepts AWG 18 to AWG 10 copper conductors
• Nylon insulation with tin-plated copper busbar, pressure wire clamp connection, 35 mm DIN-rail mounting, fingersafe (DIN 57470)

Product Highlights

Sectional Linergy fuse holder, 2-position disconnect, 30 A, 600 V AC/DC, AWG 18–10, DIN-rail mount, fingersafe

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: 9080GF6

Technical Specifications

• Brand: Schneider Electric
• MPN: 9080GF6
• Alternate MPN: 9080-GF-6
• Product Type: Terminal block, Linergy sectional fuse holder
• Series: 9080G (Square D)
• Type: Disconnect (fuse) terminal block
• Current Rating: 30 A (UL/CSA)
• Voltage Rating: 600 V AC/DC
• Number of Positions: 2
• Number of Levels: 1
• Wire Gauge: AWG 18 to AWG 10
• Termination Style: Screw / Pressure wire clamp
• Electrical Connection: Pressure wire clamp
• Material - Insulation: Polyamide (PA) / Nylon
• Busbar Material: Tin-plated copper
• Material - Terminal: Clamp terminal zinc plated steel
• Mounting Type: 35 mm DIN rail
• Protection Type: Fingersafe (DIN 57470)
• Operating Temperature: -40 to 105 °C

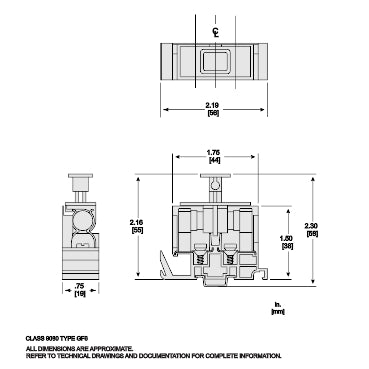

• Dimensions (Depth x Width x Height): 0.75 in x 2.19 in x 2.33 in (19.05 mm x 55.63 mm x 59.18 mm)
• Terminal - Width: 19.0 mm
• Electrical Connection Tightening Torque: 18–20 lbf·in (2.03–2.26 N·m)
• Certifications: UL recognized; CSA; CE
• RoHS Status: ROHS3 Compliant
• Color: Natural
