Schneider Electric 9070T75D20 Square D Voltage Transformer 75 VA

Product Description

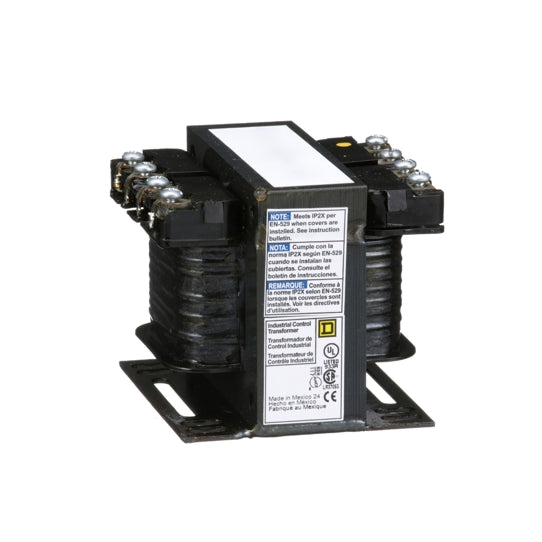

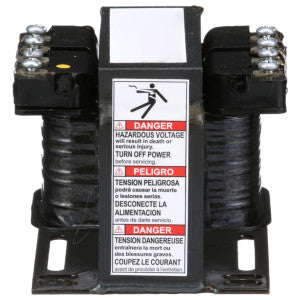

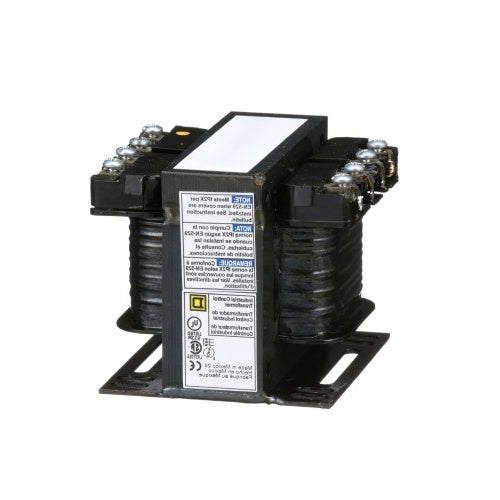

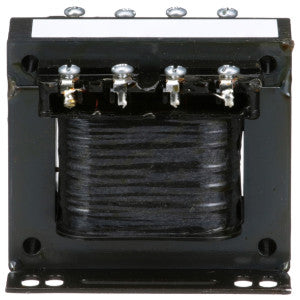

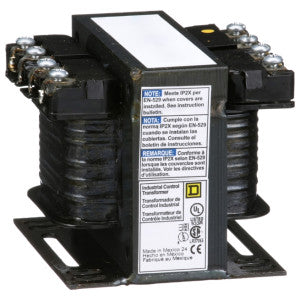

The SCHNEIDER ELECTRIC 9070T75D20 Square D Class 9070 Type T Transformer provides 75 VA output. It converts 208/230/460 VAC to 115 VAC. Measuring 2.89" x 3.38" x 3.34" (HxWxD), it features low impedance windings for voltage regulation and accommodates high inrush currents from relays, starters, solenoids, and contactors. Designed for the global market and is the best choice when size and cost are of concern.

• Customer installed accessories (Finger-Safe covers, fuse blocks, fuse clips)
• Type T transformers are designed with various temperature classes
• 50/60 Hz rated

Product Highlights

This 75 VA voltage transformer is designed for industrial control applications, offering reliable voltage conversion and regulation.

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: 9070T75D20
• Country of Origin: US

Technical Specifications

• Transformer Voltage Phases: Single Phase
• Transformer Fuse Blocks: Without Fuse Blocks
• Manufacturer: Schneider Electric
• Component: Voltage Transformer
• Transformer Primary Voltage In: 208V
• Transformer Secondary Voltage Out: 115V
• Transformer VA: 75 VA
• Brand: SQUARE D
• Primary Voltage: 208/230/460 V AC
• Secondary Voltage: 115 V AC
• Power Rating: 75 VA
• Phase: 1
• Frequency: 50/60 Hz
• Temperature Rise: 55 degrees Celsius
• Standards: UL, CSA, CE
