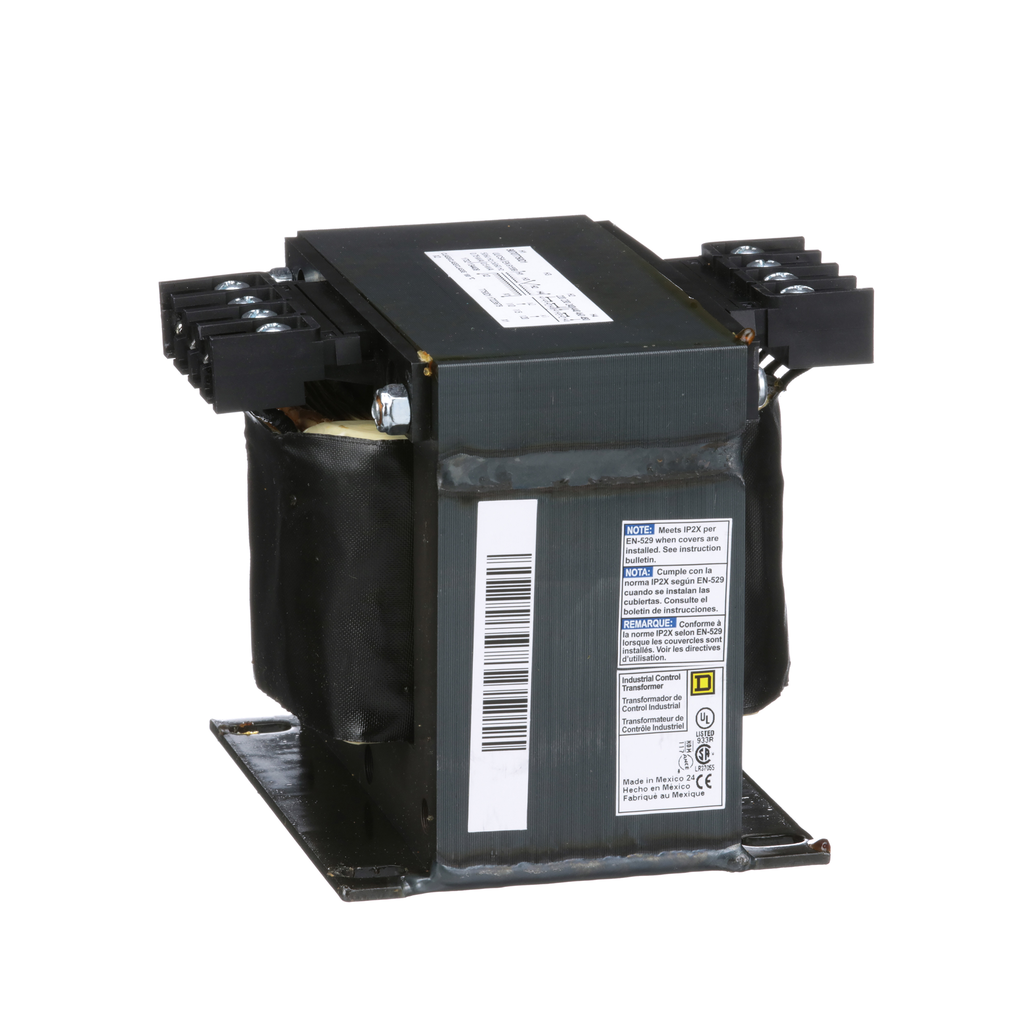

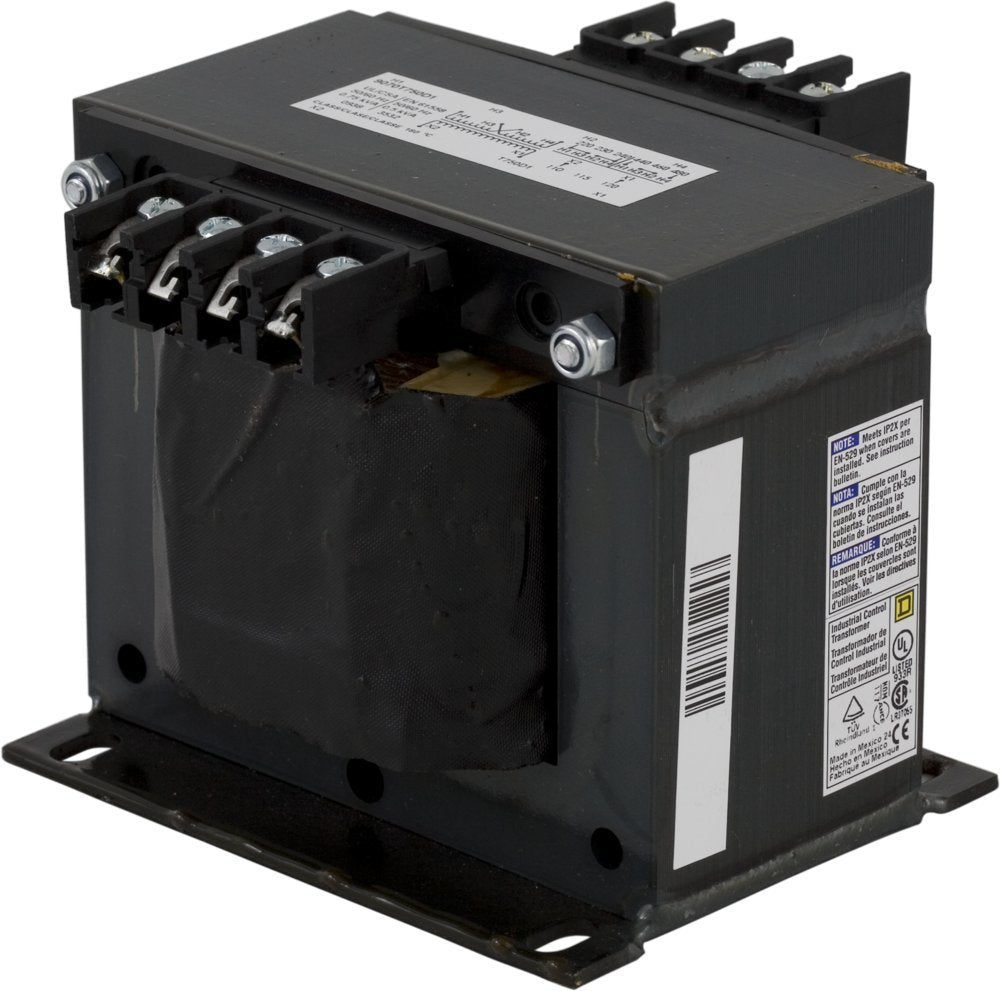

Schneider Electric 9070T750D1 Control Transformer 750 Va 4.43 Inches H

Product Description

The Schneider Electric 9070T750D1 Control Transformer is designed for those needing a reliable voltage conversion solution. With a power rating of 750VA, this control transformer is ideal for various industrial, commercial, and residential applications. Its primary voltage ranges between 240V and 480V, while the secondary voltage is 120V. This transformer adheres to UL, CSA, and CE standards, ensuring high quality and safety.

• Reliable voltage conversion
• 750VA power rating
• Complies with UL, CSA, and CE standards

Product Highlights

This robust transformer, with a capacity of 750VA, steps down voltage from 240/480V to 120V. It is constructed from high-quality materials, ensuring longevity and high performance. The transformer is designed for easy integration into existing systems and meets stringent UL, CSA, and CE standards.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 9070T750D1

Technical Specifications

• Voltage Input: 240/480 VAC
• Voltage Output: 120 VAC
• Capacity: 750 VA
• Frequency: 60 Hz
• Insulation Class: H
• Enclosure: Open or enclosed (optional)
• Material: Copper winding
• Dimensions: 5.25 in (depth), 5.66 in (width), 4.43 in (height)
• Connection: Screw clamp
• Operating Temperature: 115 degrees C
• Country of Origin: Mexico
