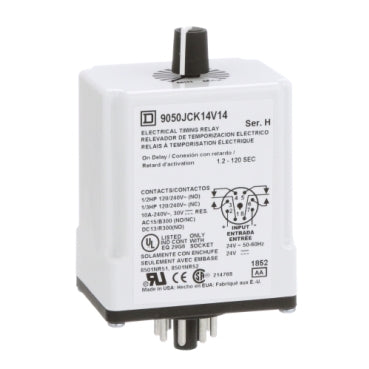

Schneider Electric 9050JCK14V14 Timing Relay, Type JCK, plug in, on delay, adjustable time, 1.2 to 120 seconds, 10A, 240 VAC, 24 VAC/DC

Product Description

The Schneider Electric 9050JCK14V14 is a timing relay designed to provide low-cost timing solutions within a plug-in housing. This relay operates in an on-delay mode, where the time delay begins once input voltage is applied. After the set delay period, relay contacts change state. When the input voltage is removed, contacts revert to their original state. The timing range is adjustable from one point two to one hundred twenty seconds via a knob located on the top.

This timing relay is compatible with the 8501NR51 or 8501NR52 relay sockets, which can be mounted on a thirty-five millimeter DIN rail or directly onto a control panel. All wiring connections are made to the relay socket itself. The dual-pole dual-throw (DPDT) contacts are rated for ten amperes resistive loads at both one hundred twenty and two hundred forty volts AC and thirty volts DC, and three amperes inductive loads at the same voltages. It can handle one third of a horsepower on the normally closed (NC) contacts and one half horsepower on the normally open (NO) contacts.

The timing relay is powered using twenty-four volts AC or DC. The 9050JCK timing relay is UL listed when used with the appropriate 8501NR relay socket and is also CSA certified.

• On-delay timing mode with adjustable delay from 1.2 to 120 seconds
• Compatible with standard relay sockets for easy installation
• UL listed and CSA certified for safety and reliability

Product Highlights

This timing relay is ideal for industrial automation applications where timing control is essential.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9050JCK14V14
• UPC: 785901056362
• Country of Origin: Unknown
• Warranty Description: Contractual Warranty: 18 months
• RoHS URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=369691&lang=en-us
• GTIN: 00785901056362
