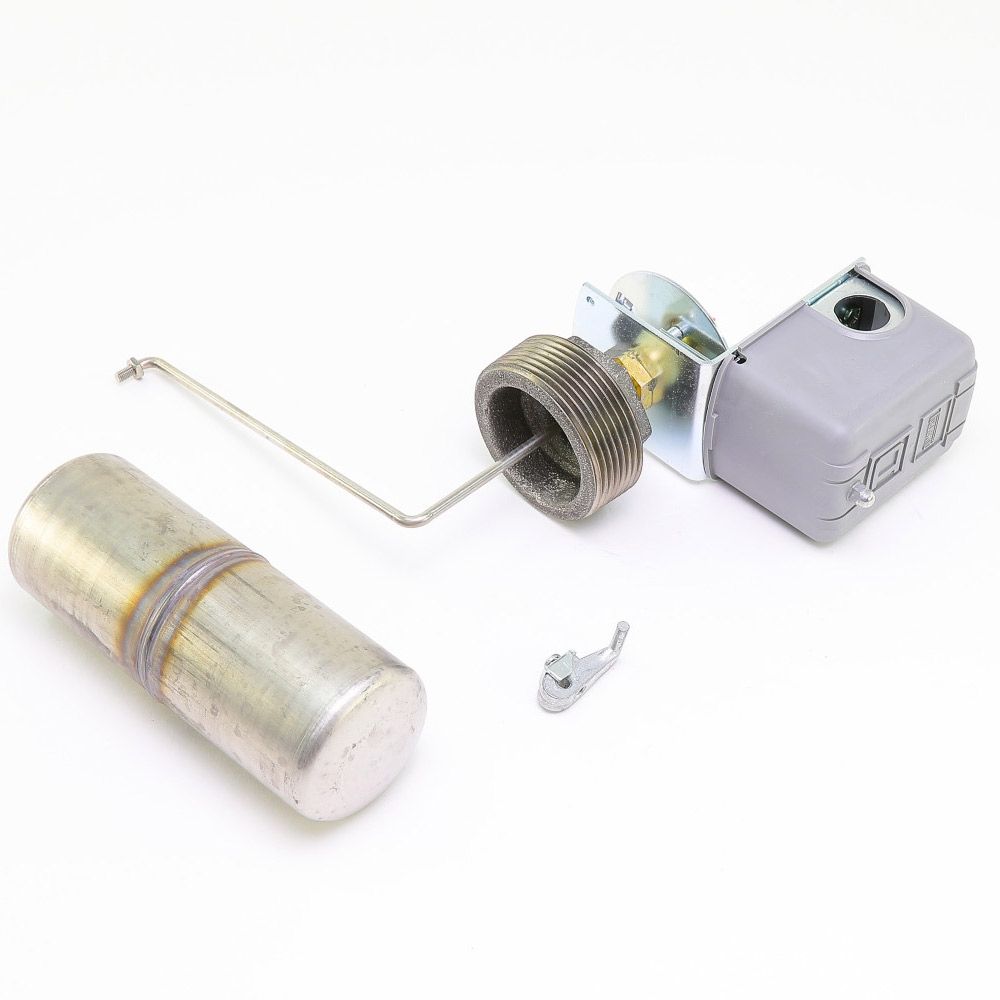

Schneider Electric 9037HG32Z20 Square D Closed-Tank Float Switch 2-1/2 Inch NPT with Viton Seal

Product Description

The Schneider Electric 9032HG32Z20 Square D closed-tank float switch is engineered for precision fluid level control in closed tanks. This switch is optimal for applications where fluid levels must be accurately maintained and monitored.

• Efficient side mounting design.
• Features a float rod angle of 90 degrees with a 4.5-inch float travel.
• Compatible with a tank connection size of 2.5 inches MNPT.

Product Highlights

Constructed from robust stainless steel, the float and stem components ensure long-term reliability and resistance to harsh fluids. Its operating temperature range is up to 250 degrees Fahrenheit, accommodating various industrial environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Model: 9037H

Technical Specifications

• NEMA Rating: 1
• Contact Form: DPST
• Max Pressure: 50 psi
• Overall Length: 16.06 inches
• Float Material: Stainless Steel
• Stem Material: Stainless Steel
• Max. Current: 600A
• Max. Voltage: 600V
