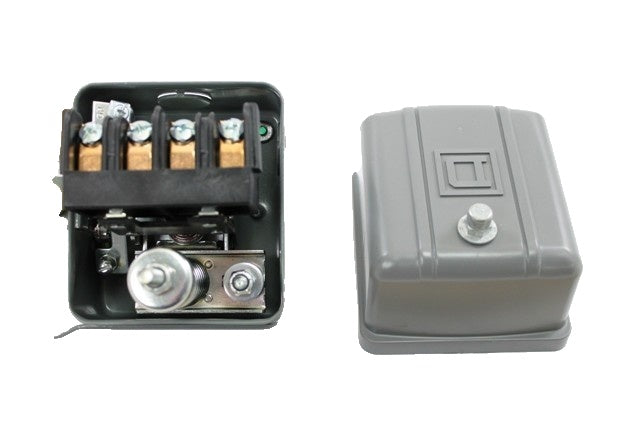

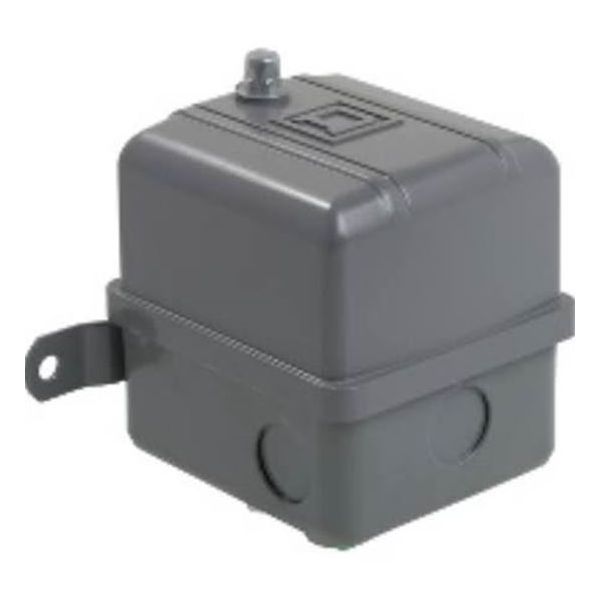

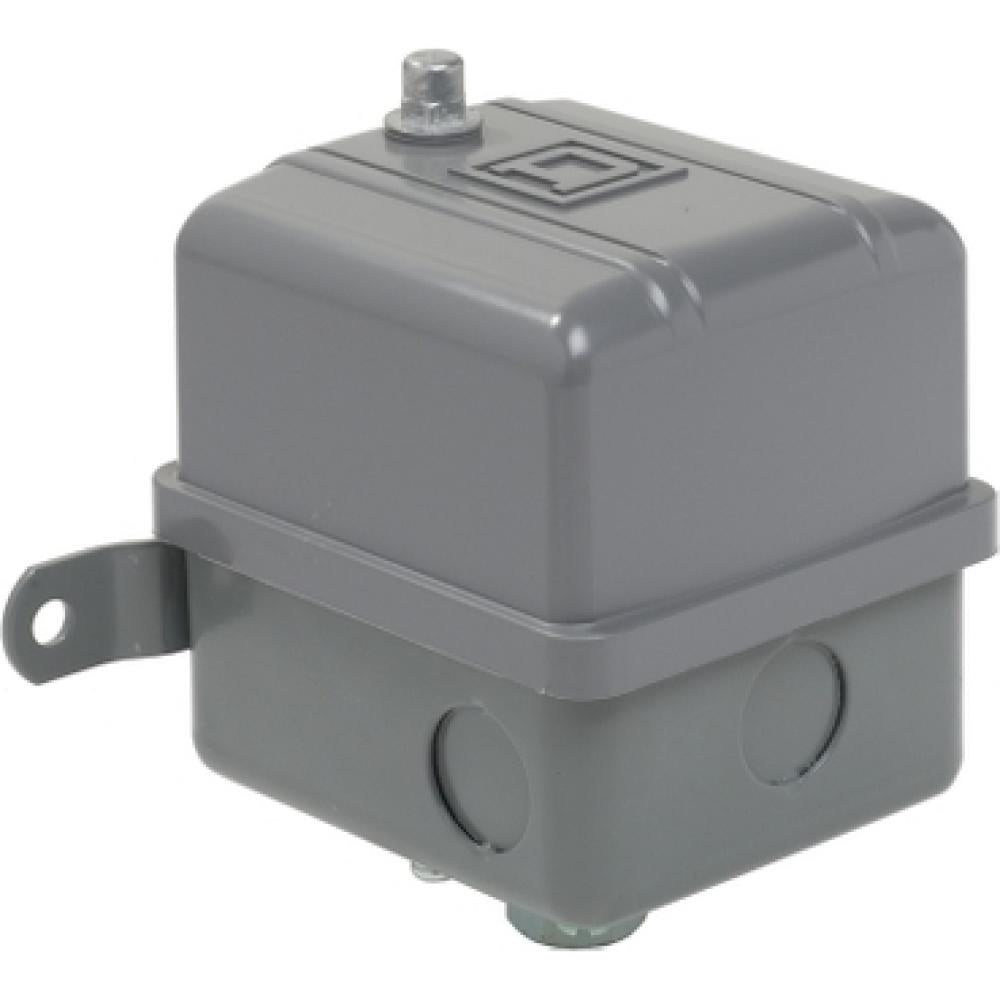

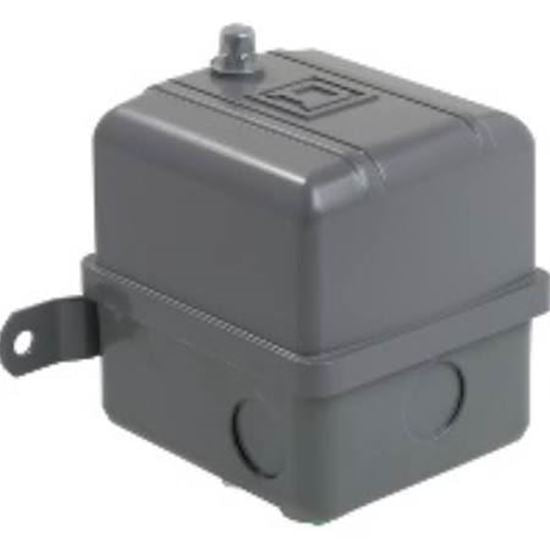

Schneider Electric 9013GHG2S6J30X Pumptrol Pressure Switch

Product Description

The Schneider Electric 9013GHG2S6J30X is a Type G electromechanical pressure switch. It is used in industrial settings to manage pressure in systems like air compressors and water pumps. The device features a dual-pole, single-throw (DPST) contact configuration and connects through a screw clamp. The switch is encased in a NEMA 1/IP20 enclosure, making it suitable for various environments.

• Pressure regulation for air compressor and pump systems
• IP20 rated for indoor use
• Handles single-phase power up to three horsepower

Product Highlights

This pressure switch is effective for single-phase applications. It supports 2 HP at 120V and 3 HP at 240V while providing reliable pressure management from forty to 170 psi.

Product Information

Standard Information

• Brand: Schneider Electric
• Series: 9013

Technical Specifications

• Type: Type G
• Contact Configuration: DPST
• Connection Type: Screw Clamp
• Connection Material: Zinc Plated Steel Flange
• Pressure Rating: 40 to 170 psi
• Maximum Pressure: 300 psig
• Enclosure Type: NEMA 1/IP20
• Diaphragm Material: Nitrile
• Voltage: 575V AC
• Material: Zinc Plated Steel Flange
• Standards: ANSI/NSF Standard 61, CSA Certified
• NEMA Rating: 1
• Temperature Range: -22 to 257 Degrees F
• AC Contact Rating: 10A @ 575V
• Actuation Type: Diaphragm
