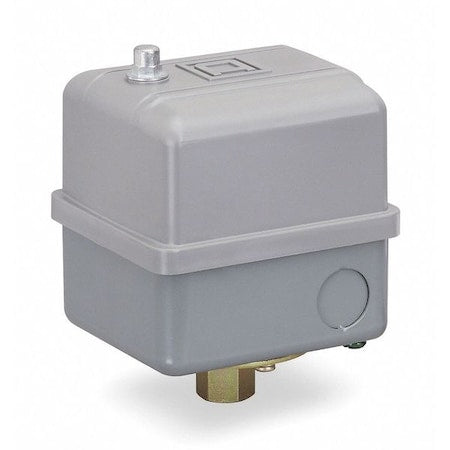

Schneider Electric 9013GHG2J57X Pressure Switch 1 Port 1/4 in FNPS DPST 40 to 200 psi Standard Action

Product Description

The Schneider Electric Pressure Switch, model 9013GHG2J57X, is engineered for optimal control of air compressors and water pumps. The unit offers straightforward functionality without any manual intervention required for operation.

• Designed for easy connection with 1/4 in FNPS single port.
• Features an adjustable pressure range from 40 to 200 psi.
• Equipped with DPST electrical contact form ensuring reliable operation.

Product Highlights

Includes a differential pressure setting adjustable between 20 and 40 psi, which enhances system efficiency and responsiveness. The industrial-grade Noryl thermoplastic resin cover and polypropylene provide durable protection against environmental factors.

Product Information

Technical Specifications

• Type: Electromechanical Pressure Switch
• Series: 9013GHG
• Material: Polypropylene Cover, Noryl Thermoplastic Resin Cover
• IP Rating: IP20 (IEC 60529)
• Standards: ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
• NEMA Rating: 1
• Temperature Range: -22 Degrees to 257 Degrees F
• Circuit Type: Power Circuit
• HP Ratings: 2 hp at 120V, 3 hp at 240V, 5 hp at 480V
