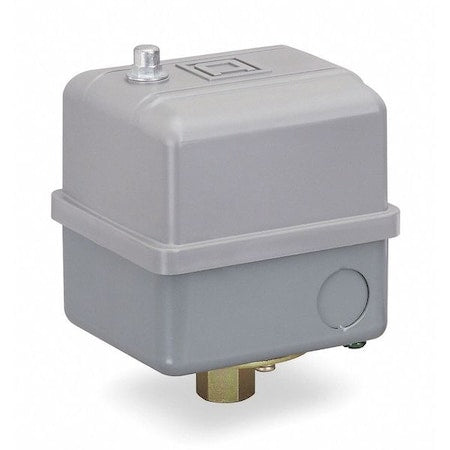

Schneider Electric 9013GHG2J53 Pressure Switch 40 to 200 PSI

Product Description

The Schneider Electric Square D 9013GHG2J53 Pressure Control Switch is designed for robust performance in industrial applications. Equipped to handle between 40 to 200 PSI, this component is tailored for both air compressors and water pumps.

• Dual-Pole Double-Throw (DPDT) switch mechanism for versatile circuit control.
• Built for durability in harsh environments.
• Compatible with multiple industrial usage scenarios.

Product Highlights

This control switch supports up to 5 horsepower in three-phase 480V setups or 2 horsepower in 120V setups. It is effectively used in industrial applications where rigorous usage is a norm.

Product Information

Standard Information

• Brand: Schneider Electric (Square D)
• Part Number: 9013GHG2J53

Technical Specifications

• Voltage Rating: Up to 240 volts
• Current Capacity: 100 amps at 125 volts, 200 amps at 250 volts
• Configuration: Double Pole, Double Throw (DPST)
• Pressure Range: 40 to 200 PSI
• Temperature Range: -22 to 257 Degrees Fahrenheit
• Differential: 20 to 40 PSI
• Protection: Polypropylene and Noryl resin covers; IP20 rating
• Compliance: ANSI, NSF, CSA, FDA, NEC, UL
