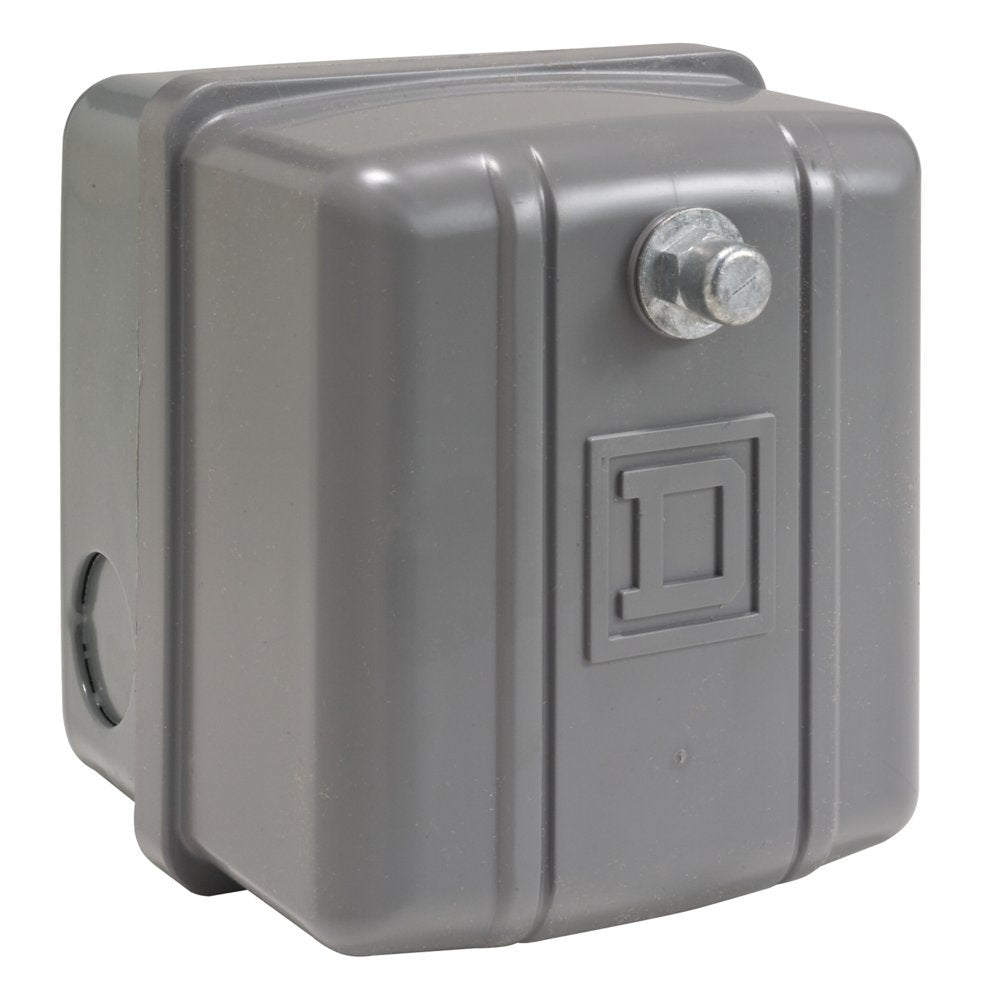

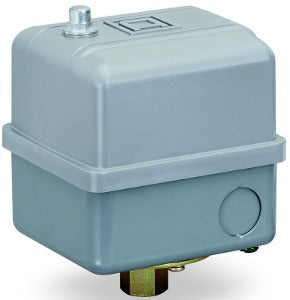

Schneider Electric 9013GHG2J30X Pressure Switch 80-100 Psi Diaphragm 1/4 FNPS

Product Description

The Schneider Electric 9013GHG2J30X Pressure Switch is an industrial-grade control component for pneumatic systems. This switch operates within an adjustable pressure range of 80 to 100 psi. It includes a release valve for system depressurization and a positive locking mechanism to prevent unintended adjustments.

• Adjustable pressure range: 80-100 psi
• Positive locking mechanism
• Release valve for quick system depressurization

Product Highlights

Ideal for air compressors and water pumps, the Schneider Electric 9013GHG2J30X Pressure Switch ensures reliable operation and safety through its durable design and precise control capabilities.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 9013GHG2J30X
• Category: Industrial & Scientific
• Subcategory: Test, Measure & Inspect

Technical Specifications

• Type: Electromechanical Pressure Switch
• Actuation Type: Diaphragm
• Operating Pressure Range: 40-200 psi
• Factory On/Off Setting: 80/100 psi
• Differential Pressure Range: 20-40 psi
• Electrical Contact Form: DPST
• Connection: 1/4 in FNPS
• HP @ 1 Phase - 120V: 2 hp
• HP @ 1 Phase - 240V: 3 hp
• HP @ 3 Phase - 240V: 5 hp
• HP @ 3 Phase - 480V: 5 hp
• Material: Polypropylene Cover, Noryl Thermoplastic Resin Cover
• Standards: ANSI/NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
• NEMA Rating: 1
• Burst Pressure: 300 psi
• Special Features: Nitrile (Buna-N) Diaphragm
• Temperature Range: -22 to 257 degrees F
• AC Contact Rating: 10A @ 575V
• Country of Origin: Mexico
