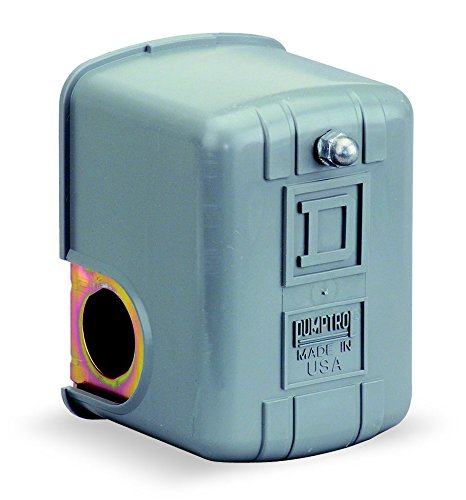

Schneider Electric 9013FSW2J21 Air-Pump Pressure Switch NEMA 3R 30-50 psi

Product Description

The Schneider Electric 9013FSW2J21 Air-Pump Pressure Switch is engineered for precise control of electrically driven water pumps. It features a pressure setting range of 30-50 psi, adjustable differential settings of 15-30 psi, and a cut-out range of 20-65 psi.

• Efficient operation with snap action mechanism.
• NEMA 3R rated enclosure for outdoor use.
• UL Listed and CSA Certified, ensuring regulatory compliance.

Product Highlights

Designed for robust performance, the 9013FSW2J21 offers versatility for various applications, including HVAC systems and industrial pumps. It aids in maintaining desired pressure levels within systems, automatically activating or deactivating the pump based on preset thresholds.

Product Information

Standard Information

• Brand: Schneider Electric
• Model Number: 9013FSW2J21

Technical Specifications

• Pressure Setting Range: 30-50 psi
• Adjustable Differential: 15-30 psi
• Cut-Out Range: 20-65 psi
• Enclosure Type: NEMA 3R
• Certifications: UL Listed, CSA Certified
• Depth: 3.76 inches
• Width: 2.78 inches
• Height: 2.8 inches
• Weight: 1 pound
