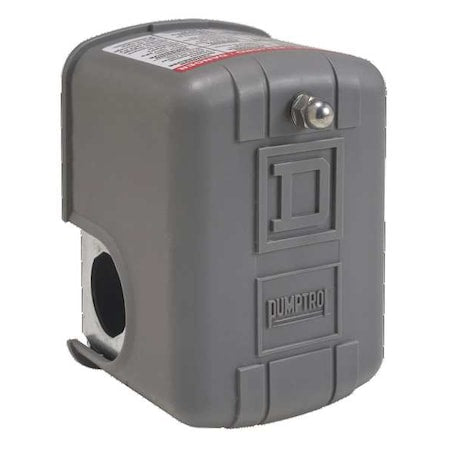

Schneider Electric 9013FSG52J33 Pressure Switch 1 Port 1/4 in FNPS DPST 10 to 80 psi

Product Description

The Schneider Electric Pressure Switch model 9013FSG52J33 is engineered for precision in controlling water pump pressure settings. Ideal for a range of industrial and automation applications, this robust switch offers highly reliable performance under varying conditions.

• Adjustable control range from 10 to 80 psi
• Switch action is standard; no unloader
• Diaphragm actuation ensures efficient operation

Product Highlights

This switch is known for its durable construction and precise pressure management, suitable for both commercial and industrial uses. It operates with a dual pole, single throw (DPST) electrical contact form, enhancing its versatility in electrical circuit integration.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 9013FSG52J33

Technical Specifications

• Pressure Control Range: 10 to 80 psi
• Connection Type: 1/4 in FNPS
• NEMA Rating: 1
• Temperature Range: -22 to 257 degrees Fahrenheit
• Electrical Rating: 10A at 575V
• Horsepower Ratings: 1 1/2 HP at 120V, 2 HP at 240V, 3 HP at 240V (3-phase), 1 HP at 480V (3-phase)
• Material: Polypropylene and Noryl thermoplastic resin
• Standards: ANSI, NSF, CSA, FDA, NEC, UL 508
