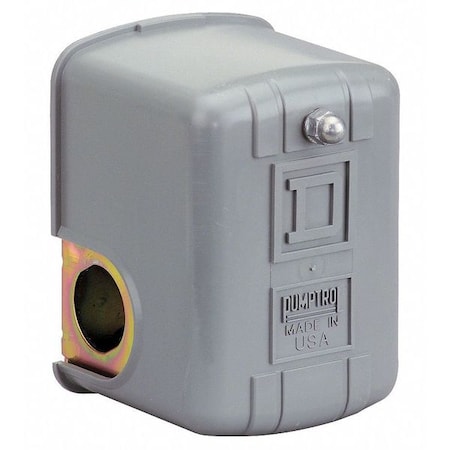

Schneider Electric 9013FSG2J20M4 Pressure Switch 1 Port 1/4 in FNPS DPST 5 to 65 psi

Product Description

The 9013FSG2J20M4 from Schneider Electric (Square D) is a DPST pressure switch designed for industrial applications. With 1 port and 1/4 inch FNPS connections, it supports a pressure range of 5 to 65 psi. It features a manual switch with Auto/Off/Start functions, making it versatile for various setups.

• Supports 20 psi On and 40 psi Off settings
• Robust design with adjustable differential scale
• Reliable performance for water pump applications

Product Highlights

The Schneider Electric 9013FSG2J20M4 is built for efficiency and durability in industrial environments. Its adjustable pressure settings and reliable performance make it essential for demanding electrical systems.

Product Information

Standard Information

• Brand: Schneider Electric (Square D)
• Item Number: 9013FSG2J20M4

Technical Specifications

• Type: Electromechanical Pressure Switch
• Series: 9013FSG
• Material: Polypropylene Cover; Noryl Thermoplastic Resin Cover
• IP Rating: IP20 (IEC 60529)
• Standards: ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
• NEMA Rating: 1
• Temperature Range: -22 to 257 Degrees F
• Circuit Type: Power Circuit
• Differential: Adjustable Differential Scale
• Product Type: Pressure Switch
• Actuation Type: Diaphragm
• Burst Pressure: 220 psi
• Special Features: Low Pressure Cut-Off
• AC Contact Rating: 10A @ 575V
• HP @ 1 Phase - 120V: 1 1/2 hp
• HP @ 1 Phase - 230V: 2 hp
• HP @ 1 Phase - 240V: 2 hp
• HP @ 3 Phase - 240V: 3 hp
• HP @ 3 Phase - 480V: 1 hp
• Manual Switch Action: Auto/Off/Start
• Electrical Connection: Screw-Clamp Terminals
• Pressure Switch Range: 5 to 65 psi
• Pressure Switch Action: Standard
• Pressure Switch Unloader: No
• Pressure Switch Port Type: 1 Port, 1/4 in FNPS
• Pressure Switch Application: Water Pump
• Pressure Switch Differential: 15 to 30 psi
• Country of Origin: Mexico
• Pressure Switch Factory On/Off Setting: 20/40 psi
• Pressure Switch Electrical Contact Form: DPST
