Description

Product Description

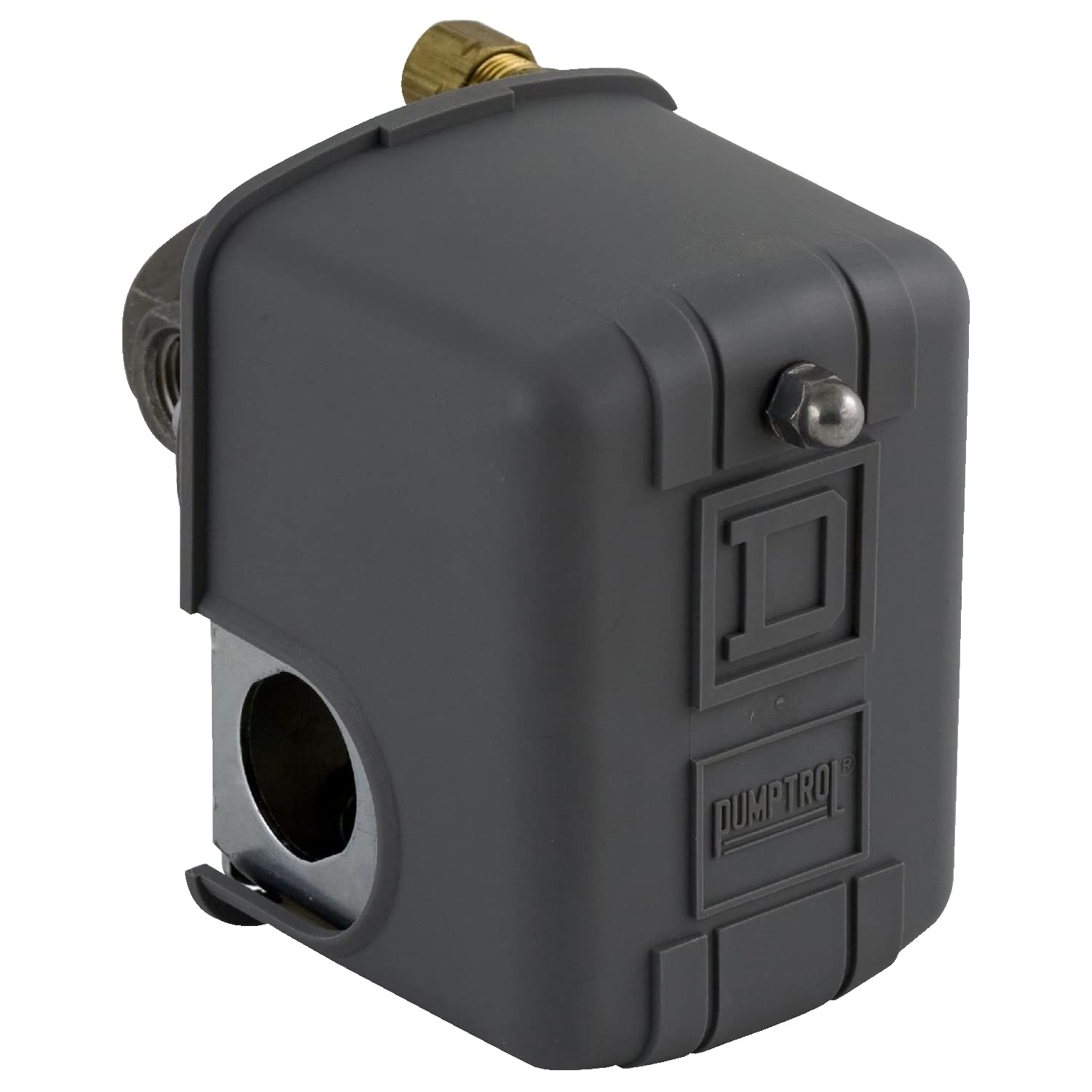

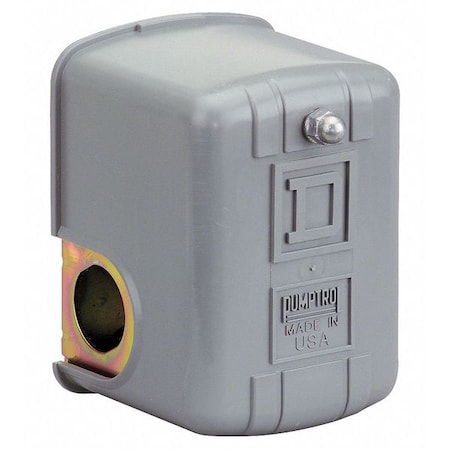

The Schneider Electric 9013FHG49J59X is an air-compressor pressure switch. This switch has a set off at 175 psi and a fixed differential of 40 psi. It is designed for reliability in demanding industrial environments.

  • 175 psi set off
  • 40 psi differential
  • 1/4 NPT external port

Product Highlights

This pressure switch is suitable for high-current applications, handling heavy loads with precision protection against overcurrents. It features a robust construction with durable components, making it ideal for use in harsh environments.

Product Information

Standard Information

  • Brand: Schneider Electric
  • MPN: 9013FHG49J59X
Technical Specifications
Item Number
9013FHG49J59X
Series
9013FHG
Pressure Switch Action
Standard
Pressure Switch Range
60 to 200 psi
Pressure Switch Differential
40 psi
Pressure Switch Port Type
1/4 in MNPT
Pressure Switch Electrical Contact Form
DPST
HP @ 1 Phase - 120V
1 1/2 hp
HP @ 1 Phase - 240V
2 hp
HP @ 3 Phase - 240V
3 hp
HP @ 3 Phase - 480V
1 hp
Pressure Switch Unloader
1/4 in Compression
Manual Switch Action
None
NEMA Rating
1
Temp. Range
-22 Degrees to 257 Degrees F
Circuit Type
Power Circuit
Actuation Type
Diaphragm
Material
Polypropylene Cover; Noryl Thermoplastic Resin Cover
IP Rating
IP20 (IEC 60529)
Standards
ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
Country of Origin
Mexico
