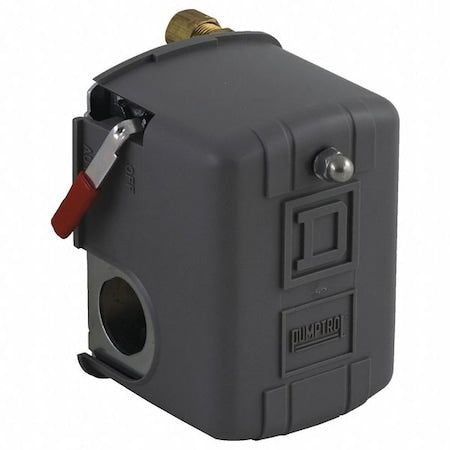

Schneider Electric 9013FHG2J43M1X ON#60 OFF#80 Pressure Switch

Product Description

The Schneider Electric 9013FHG2J43M1X ON#60 OFF#80 Pressure Switch offers reliable pressure control, ideal for industrial environments. It functions efficiently with set points at 60 PSI ON and 80 PSI OFF. The durable construction ensures longevity and dependable performance.

• Pressure range: 20 to 100 PSI
• Set points: ON at 60 PSI, OFF at 80 PSI
• Electrical connection: 1/2-inch NPT

Product Highlights

Accurate pressure control for reliable operation, with adjustable set points for customized settings. Its robust design withstands harsh conditions, making installation and maintenance easy.

Product Information

Standard Information

• Item Number: 9013FHG2J43M1X
• Brand: Schneider Electric (Square D)

Technical Specifications

• Pressure range: 20 to 100 PSI
• Set points: ON at 60 PSI, OFF at 80 PSI
• Electrical connection: 1/2-inch NPT
• Operating temperature range: -22 to 257 degrees F
• Enclosure rating: NEMA 1
• Switch Action: Auto/Off
• HP @ 1 Phase - 120V: 1 1/2 hp
• HP @ 1 Phase - 240V: 2 hp
• HP @ 3 Phase - 240V: 3 hp
• HP @ 3 Phase - 480V: 1 hp
• Electrical contact form: DPST
• Actuation Type: Diaphragm
• Material: Polypropylene Cover; Noryl Thermoplastic Resin Cover
• IP Rating: IP20 (IEC 60529)
• Standards: ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
• Differential: Fixed Differential Scale
• Special Features: Nitrile (Buna-N) Diaphragm
