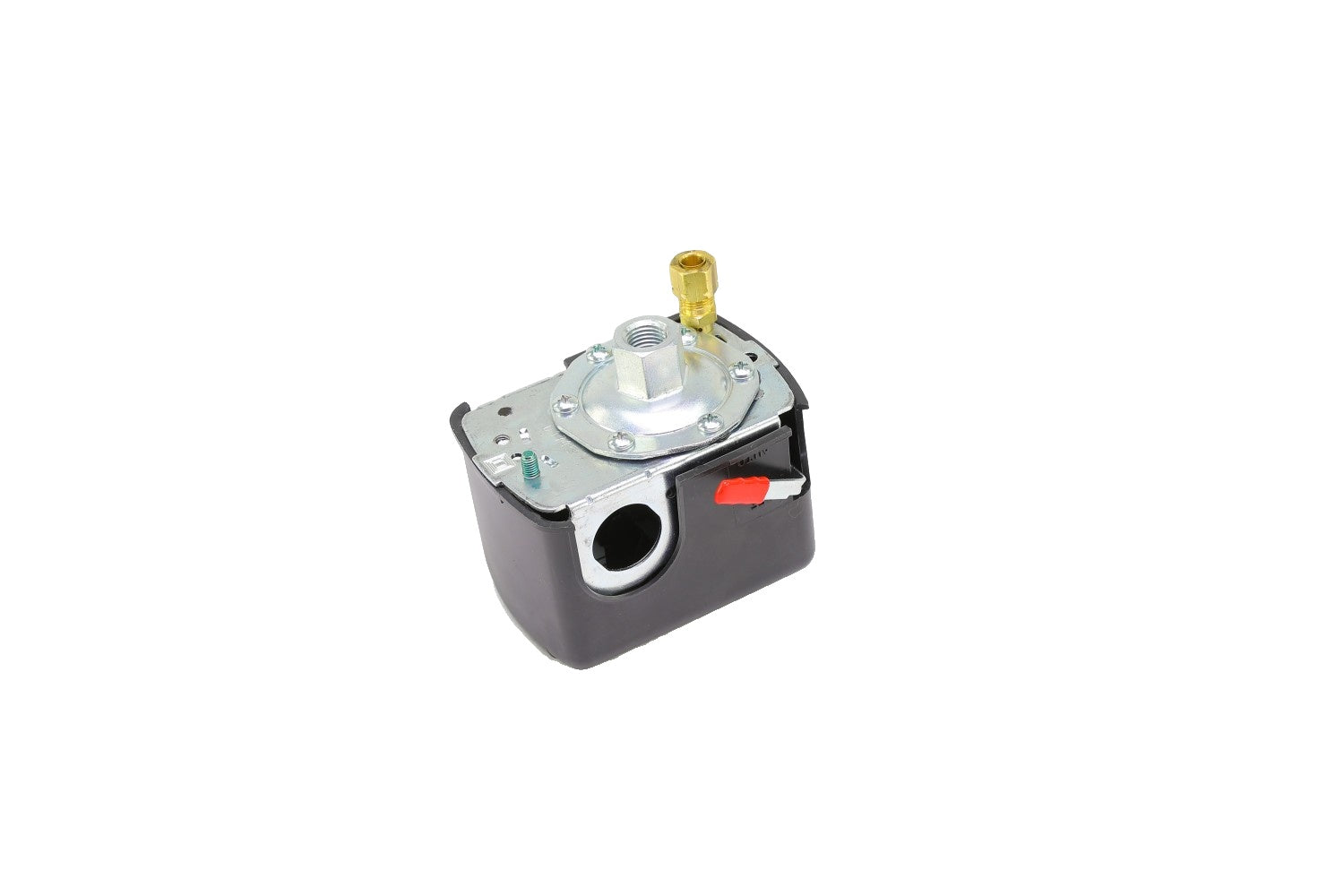

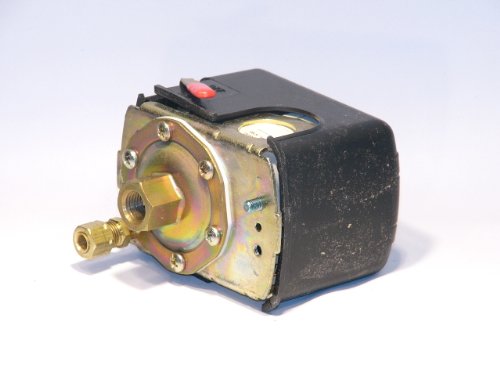

Schneider Electric 9013FHG2J27M1XZ22 Pressure Switch 575Vac 1Hp F +Options

Product Description

This Schneider Electric Pressure Switch model 9013FHG2J27M1XZ22 is designed for optimal control and efficiency in powering electrical circuits. It features a robust construction ideal for industrial environments.

• Operating range from 40 to 100 psi with a fixed differential scale.
• Incorporates a diaphragm actuation type ensuring reliable performance.
• Built with a Noryl thermoplastic resin housing for enhanced durability.

Product Highlights

The switch provides dependable operation with 2 NC, snap-action, DPST-DB contact form. It is suited for use in environments ranging from -33 to 257 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Schneider Electric (Square D)
• MPN: 9013FHG2J27M1XZ22

Technical Specifications

• Pressure Range: 40 to 100 psi
• Connection Type: 1/4 inch NPSF
• Maximum Pressure: 220 psi
• Operating Cycles: 300,000 mechanical, 100,000 electrical
• Housing Material: Noryl Thermoplastic Resin
• Diaphragm Material: Nitrile
• Electrical Connection: Screw clamp terminal
• Enclosure Type: NEMA 1, IP20
