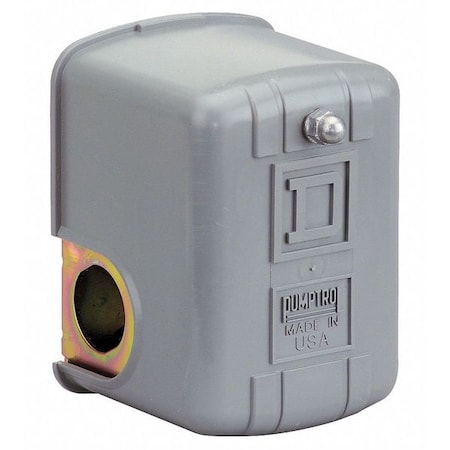

Schneider Electric 9013FHG24J27M1X Pressure Switch 2 HP Standard Action

Product Description

The Schneider Electric model 9013FHG24J27M1X is a highly dependable pressure switch designed for controlling air compressors. Engineered to maintain system pressure within preset limits, this switch activates or deactivates the compressor when necessary.

• Works effectively within a 20 to 100 psi operational range.
• Rated at 2 HP at 120V and up to 5 HP at 480V three-phase.
• Incorporates an auto-off manual switch and features a fixed differential scale.

Product Highlights

This pressure switch is equipped with a polypropylene cover and features Noryl thermoplastic resin for enhanced durability. It supports multiple electrical connections with screw-clamp terminals, ensuring a reliable and secure setup.

Product Information

Standard Information

Brand: Schneider Electric

Model: 9013FHG24J27M1X

Technical Specifications

• Electric Contact Form: DPST
• HP Ratings: 2 hp at 120V, 3 hp at 240V, 5 hp at 240V three-phase, 1 hp at 480V three-phase
• Pressure Range: 20 to 100 psi
• Switch Action: Standard
• Material: Polypropylene cover, Noryl thermoplastic resin
• IP Rating: IP20
• Standards: ANSI/NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
