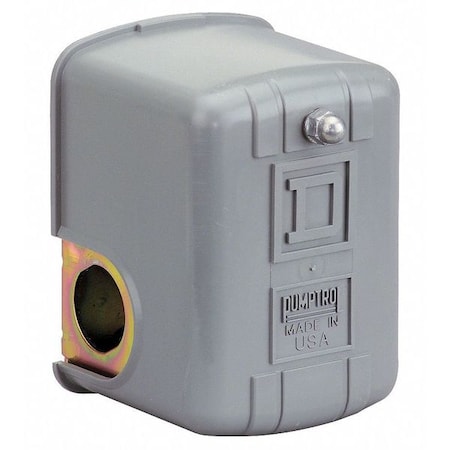

Schneider Electric 9013FHG22J43M1 Pressure Switch 1 Port 1/4 in FNPS DPST 20 to 100 psi Standard Action

Product Description

Schneider Electric model 9013FHG22J43M1 is a robust electromechanical pressure switch designed specifically for air compressors. This device operates with a manual switch action of Auto/Off and features a single port connection. With a pressure range of 20 to 100 psi, it accommodates various industrial needs.

• Polypropylene and Noryl resin covers for durability and compliance with various standards.
• Supports horsepower ranging from 1 hp up to 5 hp, depending on the voltage and phase.
• Temperature operational range from -22 to 257 degrees Fahrenheit, suitable for diverse environments.

Product Highlights

The Schneider Electric pressure switch offers reliable performance with its standard action switch and a fixed differential scale. It does not include a pressure switch unloader.

Product Information

Standard Information

• Brand: Schneider Electric
• Model: 9013FHG22J43M1

Technical Specifications

• Pressure Switch Type: Electromechanical Pressure Switch
• NEMA Rating: 1
• IP Rating: IP20 (IEC 60529)
• Electrical Connection: Screw-Clamp Terminals
• Pressure Range: 20 to 100 psi
• Factory On/Off Setting: 60/80 psi
• Operating Temperature Range: -22 to 257 Degrees Fahrenheit
