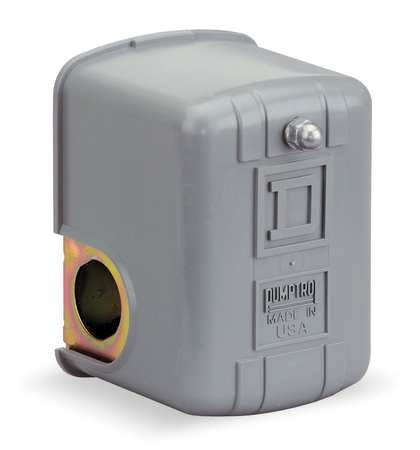

Schneider Electric 9013FHG12J39 Pressure Switch Standard 40 to 150 Psi DPST

Product Description

The Schneider Electric 9013FHG12J39 Pressure Switch is designed for use with air compressors. This device controls the pressure within the compressor, ensuring efficient operation. The switch operates in a range of 40 to 150 psi and has a 1/4 inch FNPS port.

• Pressure range: 40 to 150 psi
• Contact form: DPST
• NEMA rating: 1

Product Highlights

Ideal for air compressor applications, the Schneider Electric 9013FHG12J39 Pressure Switch features standard action and reliable performance within a temperature range of -22 degrees to 257 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Schneider Electric (Square D)
• Series: 9013FHG

Technical Specifications

• Item Number: 9013FHG12J39
• Type: Electromechanical Pressure Switch
• Material: Polypropylene Cover, Noryl Thermoplastic Resin Cover
• IP Rating: IP20 (IEC 60529)
• Standards: ANSI/NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
• Temp. Range: -22 degrees to 257 degrees Fahrenheit
• Circuit Type: Power Circuit
• Differential: Fixed Differential Scale
• Product Type: Pressure Switch
• Actuation Type: Diaphragm
• Burst Pressure: 220 psi
• Special Features: Nitrile (Buna-N) Diaphragm
• AC Contact Rating: 10A @ 575V
• HP at 1 Phase - 120V: 1.5 hp
• HP at 1 Phase - 230V: 2
• HP at 1 Phase - 240V: 2 hp
• HP at 3 Phase - 240V: 3 hp
• HP at 3 Phase - 480V: 1 hp
• Manual Switch Action: None
• Electrical Connection: Screw-Clamp Terminals
• Pressure Switch Range: 40 to 150 psi
• Pressure Switch Action: Standard
• Pressure Switch Unloader: No
• Pressure Switch Port Type: 1 Port, 1/4 inch FNPS
• Pressure Switch Application: Air Compressor
• Pressure Switch Differential: 30 psi
• Country of Origin: Mexico
• Pressure Switch Factory On/Off Setting: 105/135 psi
• Pressure Switch Electrical Contact Form: DPST
