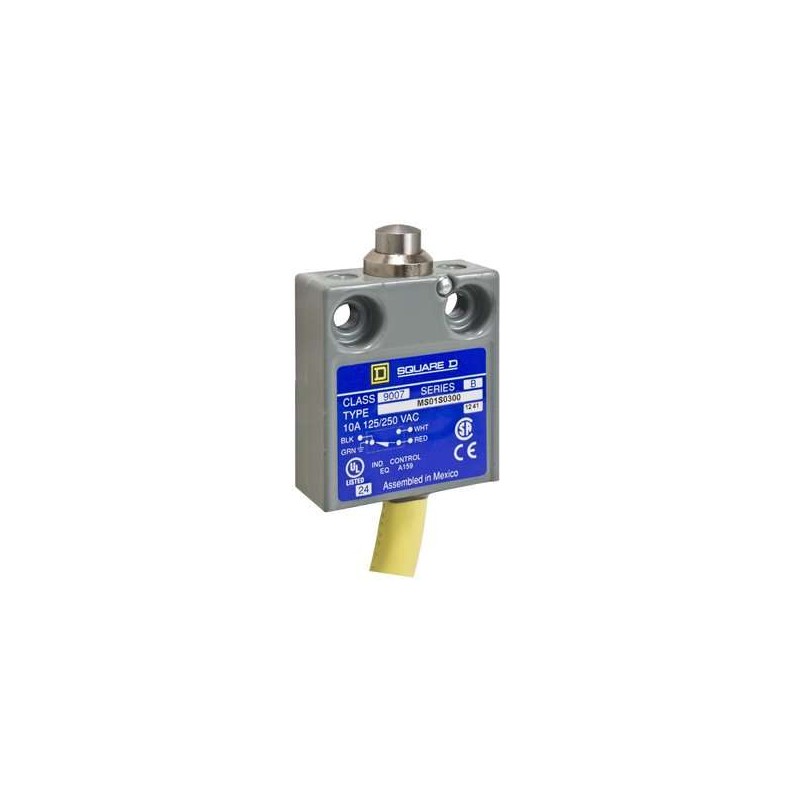

Schneider Electric 9007MS01S0100 Limit Switch 240 VAC 3 A (Top Plunger)

Product Description

Schneider Electric 9007MS01S0100 is a general-purpose limit switch with a top plunger actuator designed for position sensing and end-of-travel detection. It features SPDT (1 NO, 1 NC) snap-action contacts, prewired cable termination, IP67 ingress protection and NEMA 1/2/4/6/6P ratings, and an operating force of 80 oz. Typical electrical ratings include 240 VAC at 3 A and 28 VDC at 5 A for control and sensing applications.

• SPDT (1 NO, 1 NC) snap-action contacts with rated 240 VAC at 3 A and 28 VDC at 5 A
• Top push plunger actuator, 80 oz operating force, prewired #18 AWG SJTO cable
• Sealed epoxy/metal body with IP67 protection and NEMA 1/2/4/6/6P ratings

Product Highlights

Top plunger SPDT limit switch, prewired 18 AWG SJTO cable, IP67/NEMA sealed enclosure, 80 oz actuation force

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: 9007MS01S0100
• Country of Origin: Mexico

Technical Specifications

• Brand: Schneider Electric
• Manufacturer Part Number: 9007MS01S0100
• Product Type: Limit switch
• Series: 9007 Series
• Actuator: Top plunger
• Operation Type: Snap action
• Contact Configuration: SPDT (1 NO, 1 NC)
• Contact Rating (AC): 240 VAC at 3 A
• Contact Rating (DC): 28 VDC at 5 A
• Terminal Type: Prewired cable
• Cable Type and Length: 18 AWG SJTO, 3 ft, stranded
• Enclosure Rating (IP): IP67
• NEMA Rating: NEMA 1, 2, 4, 6, 6P
• Operating Force: 80 oz
• Total Travel: 0.19 in
• Pretravel: 0.07 in
• Differential Travel: 0.004 in
• Body Material: Die-cast zinc / cast zinc
• Operating Temperature: -40 to 220 F
• Electrical Durability: 100000 cycles
• Mechanical Durability: 10000000 cycles
• Certifications: UL, CSA, CE
• Country of Origin: Mexico
• Weight (manufacturer): 0.288 kg
• RoHS Compliance: Yes
