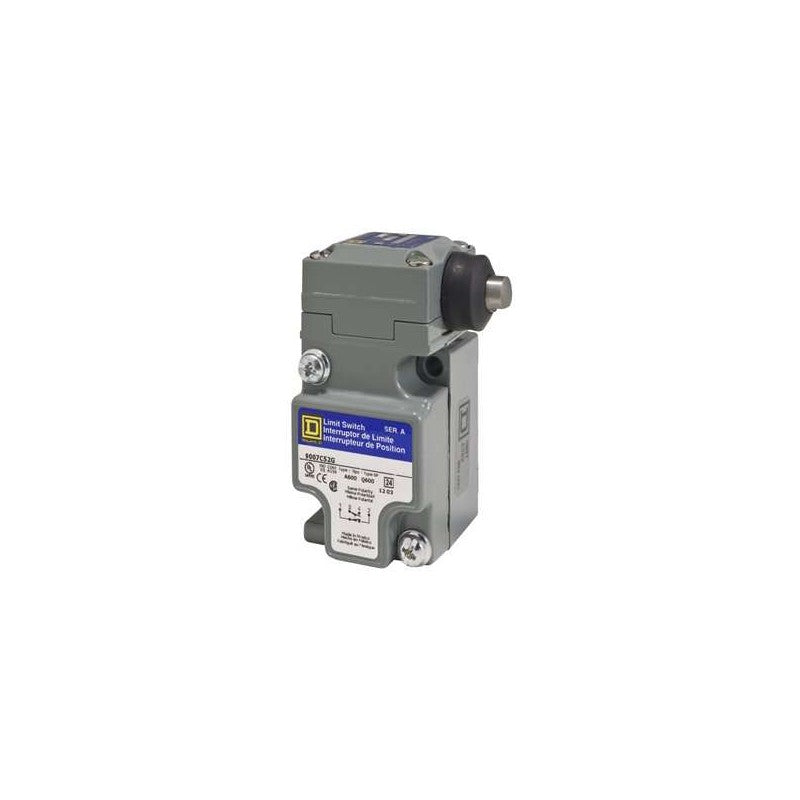

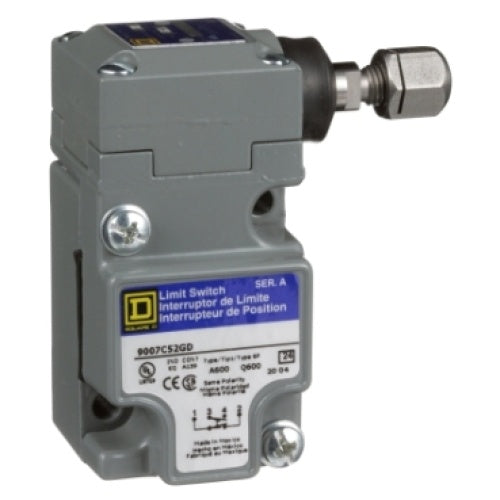

SCHNEIDER ELECTRIC 9007C52GD LIMIT SWITCH

Product Description

The Schneider Electric 9007C52GD is a reliable limit switch suitable for various industrial applications. This switch operates at a voltage of six hundred volts and a current of ten amperes. It features a linear spring return and a plunger operator, providing efficient operation. The design allows for easy mounting by the body and uses screw clamp terminals for secure connections. The switch is equipped with a normally closed (NC) and normally open (NO) contact configuration.

• Rated for six hundred volts and ten amperes
• Linear spring return and plunger operator
• Screw clamp terminals for easy connection

Product Highlights

Schneider Electric's limit switch is built to perform in demanding environments, making it ideal for controls in compact boxes.

Product Information

Standard Information

• Manufacturer: Telemecanique
• Mounting: By the body

Technical Specifications

• Type: Linear
• Type of Operator: Plunger
• Output Signal Type: On end
• IP Protection: IP67
• Number of Poles: 1 Pole
• Contact Configuration: NC-NO
• Application: Compact box
• Temperature Range: -29 to 85 °C
