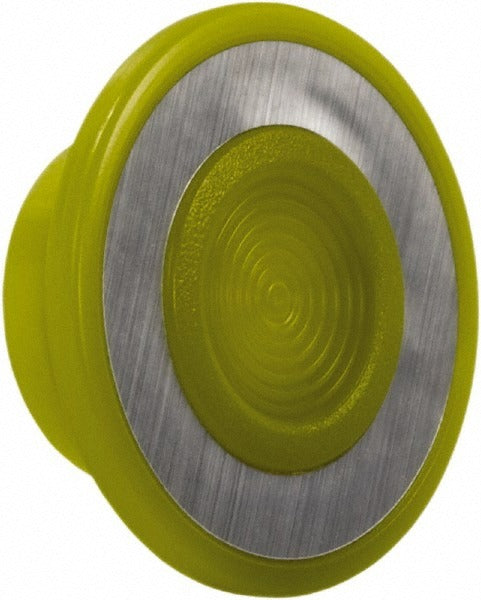

Schneider Electric 9001Y22 Pushbutton Switch Cap Yellow

Product Description

The SCHNEIDER ELECTRIC 9001Y22 is a yellow, illuminated extended mushroom head cap designed as a replacement accessory for 30 mm pushbutton switches. This operator cap fits over the pushbutton mechanism to provide a large, easily actuated switching surface in control panel applications. The extended mushroom head profile makes it easier to identify and press under load or while wearing gloves. The illuminated design allows the cap to transmit indicator light from the switch body, giving operators a clear visual status signal. Licensed electricians and industrial control technicians install this component during panel builds, retrofits, or scheduled maintenance on motor control centers and operator interface stations.

This cap is suited for use in industrial control panels, machine operator stations, and process control equipment where 30 mm pushbutton assemblies are standard. Its yellow color follows common color-coding conventions for caution, start, or function-specific controls in manufacturing, utilities, and commercial building automation. The extended mushroom head form factor is commonly specified in applications where quick, positive actuation is required, including emergency-stop adjacent controls and cycle-start functions. Installation is typically performed by licensed electricians or qualified control panel technicians as part of a larger panel assembly or field repair.

Key Features

• Extended mushroom head profile provides a large, positive actuation surface
• Yellow color supports standard industrial control panel color-coding practices
• Illuminated design transmits indicator light from the switch body for clear visual feedback
• Designed for 30 mm pushbutton switch assemblies
• Sold as a single cap, suitable for individual replacement or low-quantity panel work

Compatibility

Designed for use with 30 mm pushbutton switch assemblies. Specific compatible switch series or model numbers were not provided in available product data; verify fitment against your existing 30 mm Schneider Electric pushbutton operator before ordering.

Installation Notes

Installation should be performed by a qualified electrician or control panel technician. De-energize the control panel and follow lockout/tagout procedures before removing or installing any pushbutton operator component. Ensure the replacement cap is fully seated and secured to the switch body before restoring power. Consult applicable NEC guidelines and the original equipment documentation for panel wiring and assembly requirements.
