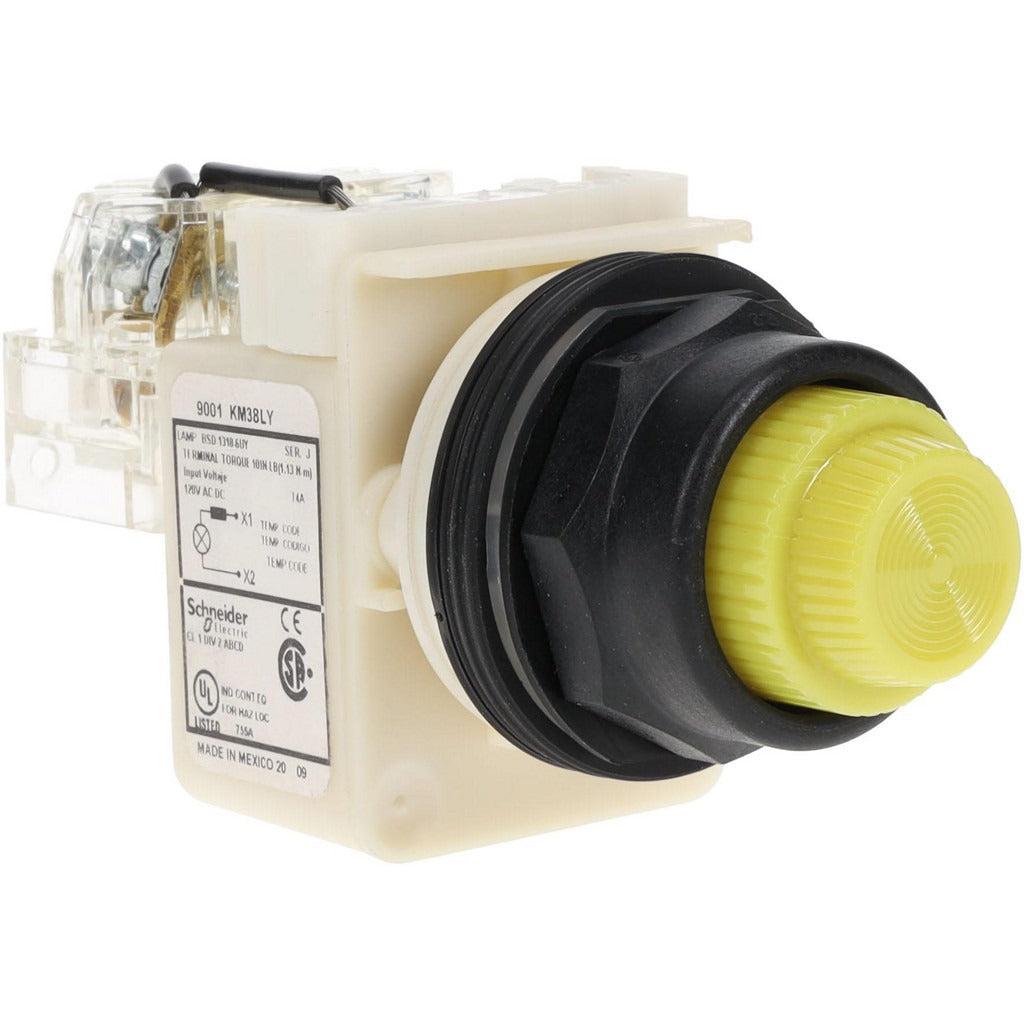

Schneider Electric 9001SKT38LYY31 Led Indicating Light

Product Description

The SCHNEIDER ELECTRIC 9001SKT38LYY31 is a 120-volt LED indicating light with a yellow round lens and a press-to-test function. It is designed for use on industrial control panels and machine operator interfaces where a durable, visible status indicator is required. The unit uses an LED light source, which provides long service life compared to incandescent pilots. The screw clamp connector simplifies field wiring. The 30mm panel cutout diameter is a standard size widely used in control panel construction. Licensed electricians and industrial maintenance technicians are the primary installers of this device.

This indicating light is suited for residential and commercial control panels, industrial machinery, and automated equipment enclosures. It is built to withstand corrosion, dust, and oil exposure, making it appropriate for harsh or wash-down-adjacent environments. The NEMA 4 and 4X ratings confirm suitability for locations where moisture and contaminant ingress protection is required. It is packaged and sold individually, making it practical for both service replacement and new panel builds.

Key Features

• Press-to-test function allows lamp verification without interrupting the circuit
• LED lamp type for extended service life and low power draw
• 120-volt AC operation matches standard North American control circuit voltage
• Screw clamp connector for secure, tool-assisted field wiring
• 30mm round lens fits standard 30mm panel cutout openings
• Rated corrosion resistant, dust resistant, and oil resistant for demanding environments

Compatibility

Designed as an OEM-style replacement or new-installation indicating light for 30mm panel cutout applications on industrial and commercial control panels requiring a 120-volt LED pilot light.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize the control panel and verify the circuit is at zero voltage before mounting or wiring the device. Secure wiring under the screw clamp connectors to the torque value specified on the panel schematic or terminal documentation. Confirm the panel cutout diameter is 30mm before installation to ensure proper fit and sealing.
