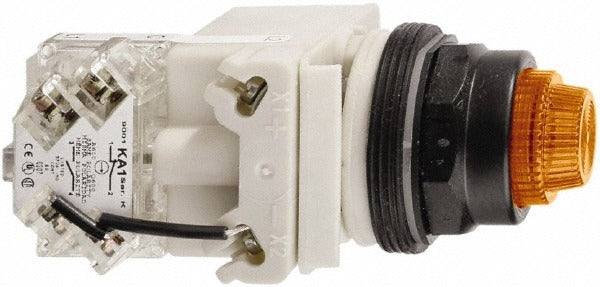

Schneider Electric 9001SKT38LYA31 Led Indicating Light

Product Description

The SCHNEIDER ELECTRIC 9001SKT38LYA31 is a 120-volt LED press-to-test indicating light designed for use in industrial control panels and machine operator interfaces. It features an octagonal orange lens and a screw clamp connector for secure, tool-assisted termination. The LED lamp type provides long service life and low power draw compared to incandescent alternatives. Built with vibration resistance, this pilot light maintains reliable operation in environments subject to mechanical stress. Electricians and control panel builders install this type of device as a status indicator for equipment running, fault, or process states. The unit measures 4.5 inches in length, 2.3 inches in width, and 2 inches in height, and weighs 0.27 pounds.

This indicating light is suited for residential, commercial, and industrial control applications where a clear visual status signal is required at the operator panel. The orange lens color is commonly used to signal caution, standby, or process-in-progress states. It is appropriate for use in NEMA 1, 2, 3, 3R, 4, 4X, 12, and 13 rated enclosures, covering general-purpose through watertight and corrosion-resistant installations. Panel builders working on OEM machine controls, motor control centers, and process automation equipment will find this a direct-fit pilot light solution.

Key Features

• 120-volt AC LED lamp type for long service life and low power consumption
• Press-to-test function allows bulb and circuit verification without interrupting the process
• Octagonal orange lens for quick visual identification of caution or standby states
• Screw clamp connector provides secure, vibration-resistant wire termination
• Vibration-resistant construction suited for industrial machine environments
• Rated for NEMA 1, 2, 3, 3R, 4, 4X, 12, and 13 enclosure types

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for industrial control panels and operator interface stations requiring a 120-volt LED indicating light in a NEMA-rated enclosure.

Installation Notes

Installation is performed by a licensed electrician or qualified control panel builder in accordance with NEC requirements and applicable local codes. Disconnect and lock out all power to the control panel before removing or installing any indicating light. Use appropriate hand tools to secure the screw clamp connector to the specified wire gauge for the circuit. Verify the press-to-test function after installation to confirm lamp and wiring integrity before returning the panel to service.
