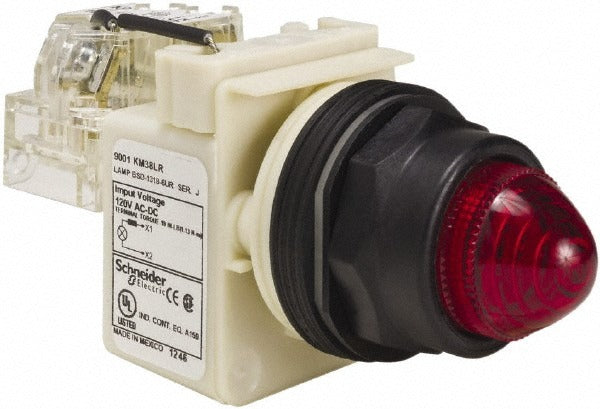

Schneider Electric 9001SKT38LRR9 Indicating Light 120V

Product Description

The SCHNEIDER ELECTRIC 9001SKT38LRR9 is a 120-volt LED press-to-test indicating light designed for panel and control station applications. It features a round red lens and a screw clamp connector for secure, vibration-resistant termination. The LED lamp type provides long service life and low power draw compared to incandescent pilots. Built to resist corrosion, dust, and oil, this unit is suited for demanding industrial and commercial environments where panel indicators must maintain visibility and reliability over extended service cycles. Licensed electricians and control panel technicians are the primary installers of this device.

This indicating light is used in motor control centers, machine control panels, and operator interface stations where a 120-volt pilot light with a press-to-test function is required. The press-to-test feature lets technicians verify lamp and circuit integrity without interrupting the controlled process. The red lens color convention typically signals a fault, running, or energized condition depending on the panel design. It is appropriate for both industrial and light commercial control enclosures requiring NEMA-rated pilot devices.

Key Features

• 120-volt AC operating voltage with LED lamp type for long service life
• Press-to-test function allows fast lamp and circuit verification
• Round red lens provides clear status indication
• Screw clamp connector for secure, tool-based wire termination
• Corrosion resistant, dust resistant, and oil resistant construction
• Meets NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 enclosure ratings

Compatibility

Designed as an OEM-style replacement pilot light for 30mm control station and panel cutout applications requiring a 120-volt LED indicating light with press-to-test functionality.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the control panel before removing or installing pilot devices. Screw clamp connectors require a small flat-blade screwdriver for wire termination. Verify the panel enclosure NEMA rating matches the environmental requirements of the installation location before mounting.
