Schneider Electric 9001SKT38LRR31 Led Indicating Light

Product Description

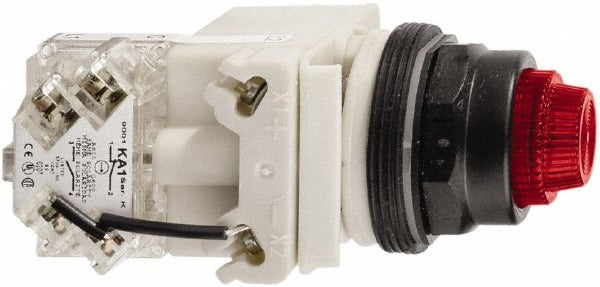

The SCHNEIDER ELECTRIC 9001SKT38LRR31 is a 120-volt LED indicating light designed for panel-mount status indication in industrial and commercial control applications. The unit features a red octagonal lens with a press-to-test function, allowing technicians to verify lamp operation without interrupting the circuit. A screw clamp connector provides a secure, vibration-resistant termination. The LED light source offers long service life compared to incandescent alternatives and draws less current, making it suitable for densely populated control panels. This indicator meets a broad set of international standards including UL 508, NEMA 4X, and IEC 60947 series, covering indoor and outdoor enclosure ratings up to washdown and corrosion-resistant environments.

This indicating light is intended for use in motor control centers, machine control panels, HVAC unit controllers, and industrial automation enclosures. It is rated for NEMA 1, 2, 3, 3R, 4, 4X, 12, and 13 enclosure environments, making it appropriate for both general-purpose indoor panels and outdoor or wet-location installations. Electricians and industrial controls technicians typically specify this part when replacing failed pilot lights or upgrading incandescent indicators to LED on existing 120-volt control circuits.

Key Features

• 120-volt AC operation suits standard North American control circuit voltages
• Red octagonal lens for quick visual status identification at the panel face
• Press-to-test function confirms LED and circuit integrity without disconnecting power
• Screw clamp connector for reliable, tool-secured wiring termination
• Vibration-resistant construction for use on machinery and equipment panels
• Rated NEMA 1/2/3/3R/4/4X/12/13 for broad enclosure compatibility

Compatibility

Designed as an OEM-style replacement or direct-install LED pilot light for 120-volt industrial and commercial control panels requiring an octagonal-lens screw-clamp indicating light.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (NEC) and applicable local codes. De-energize and lock out the control panel before removing the existing indicator or making any wiring connections. Verify the control circuit voltage matches the 120-volt rating of this device before energizing. Use the press-to-test function after installation to confirm proper operation before closing the enclosure.
