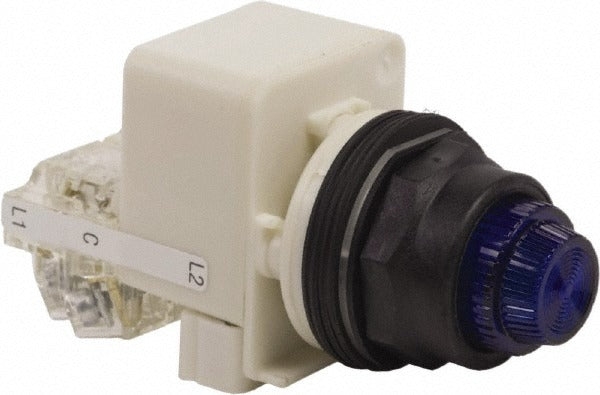

Schneider Electric 9001SKT38LLL31 Led Pilot Light 120V

Product Description

The SCHNEIDER ELECTRIC 9001SKT38LLL31 is a 120-volt LED pilot light designed for industrial and commercial control panel applications. Fitted with a round blue lens and a screw clamp connector, it provides a clear, low-energy visual status indication on machine fronts, enclosure doors, and operator stations. The LED lamp type delivers long service life and consistent illumination. At 4.5 inches in overall length and 2.4 inches wide, it fits standard 30mm mounting cutouts. The unit is vibration resistant, making it suitable for equipment subject to mechanical stress. Electricians and panel builders are the primary installers of this device.

This pilot light is used in residential, commercial, and light industrial control panels where a 120-volt AC status indicator is required. It is well suited for motor control centers, machine tool panels, and operator interface stations. The round blue lens identifies it as a specific status color in multi-light panel layouts. The screw clamp connector simplifies field wiring during panel assembly or retrofit work. Its vibration-resistant construction supports use on compressors, pumps, and other mechanically active equipment where standard indicators may fail prematurely.

Key Features

• 120-volt AC rated LED lamp type for direct line-voltage operation without a separate transformer
• Round blue lens for clear color-coded status indication in panel layouts
• Screw clamp connector for secure, tool-assisted field wiring
• Vibration resistant construction suitable for mechanically demanding environments
• Compact footprint at 4.5 inches length by 2.4 inches width for standard 30mm panel cutouts
• Meets multiple standards including UL 508, NEMA 1/2/3/3R/4/4X/12/13, CSA C22.2 No. 14, and EN/IEC 60947-5-1

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for 120-volt control panels using 30mm indicator mounting configurations.

Installation Notes

Installation is performed by a licensed electrician following NEC panel wiring requirements. De-energize and lock out the control panel before removing or installing any pilot light. Secure the screw clamp connector to the designated terminal with an appropriate screwdriver, ensuring the connection is fully seated to prevent intermittent operation. Confirm the supply voltage matches the 120-volt rating of the device before energizing the panel.
