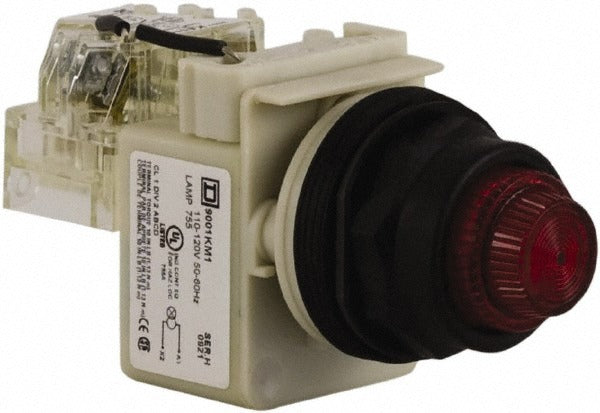

Schneider Electric 9001SKT1R31 Press-to-test Indicating Light

Product Description

The SCHNEIDER ELECTRIC 9001SKT1R31 is a press-to-test pilot indicating light designed for industrial control panel and machinery applications. It operates at 110 VAC or 120 VAC at 50/60 Hz via transformer and features a round red lens for clear status indication. The screw clamp connector simplifies field wiring. Rated to NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 enclosure standards, this unit is built to withstand demanding environments. Licensed electricians and industrial controls technicians are the primary installers. It weighs 0.45 pounds and measures 4.5 inches in length, 2 inches in width, and 2.4 inches in height.

This indicating light is suited for use in commercial and industrial control panels, motor control centers, and machine operator interfaces where a reliable, visible status signal is required. The red lens color is commonly used to signal fault, stop, or alarm conditions. Its resistance to corrosion, dust, and oil makes it appropriate for washdown-adjacent environments and shop-floor enclosures rated NEMA 4X and 12/13. It ships individually and is available as a replacement or web-only SKU.

Key Features

• Press-to-test function allows lamp verification without interrupting the circuit
• Operates at 110 VAC or 120 VAC at 50/60 Hz via transformer
• Round red lens provides clear, color-coded status indication
• Screw clamp connector for secure, tool-assisted field wiring
• Rated corrosion resistant, dust resistant, and oil resistant
• Meets NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 enclosure standards

Compatibility

Designed as an OEM-style replacement indicating light for industrial control panels and enclosures requiring a 110-120 VAC pilot light with a round red lens and screw clamp termination.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the control panel before removing the existing pilot light or making any wiring connections. Verify transformer output voltage matches the rated input of the unit before energizing. Confirm the enclosure rating of the mounting location is compatible with the NEMA rating required for the application.
