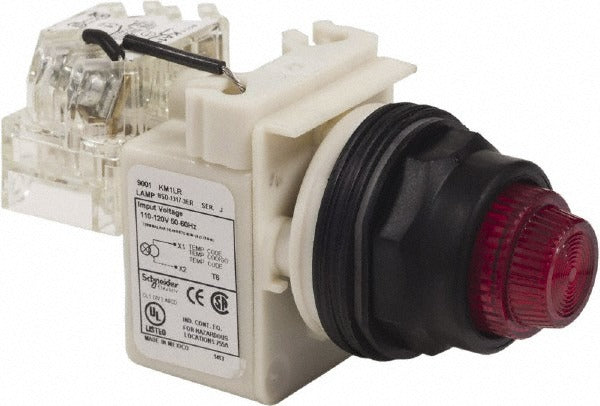

Schneider Electric 9001SKT1LRR31 Led Pilot Light 120V

Product Description

The SCHNEIDER ELECTRIC 9001SKT1LRR31 is a 120-volt AC LED pilot light designed for industrial control panel applications. It features a round red lens and a screw clamp connector for secure, reliable termination. The unit measures 4.5 inches in length, 2.4 inches in width, and 2 inches in height, making it compact enough for dense panel layouts. Rated for vibration-resistant operation, this pilot light holds up in environments where mechanical stress is a regular factor. Electricians and control panel builders install this indicator light to provide clear visual status feedback on machinery, equipment, or process control systems.

This pilot light is suited for residential, commercial, and light industrial control panel builds where a rugged, standards-compliant indicator is required. It is commonly installed in enclosures rated NEMA 1, 2, 3, 3R, 4, 4X, 12, or 13, covering indoor, outdoor, and washdown environments. The 120-volt AC input makes it a direct fit for standard North American control circuit voltages without the need for additional transformers or resistors.

Key Features

• 120-volt AC LED lamp for energy-efficient, long-service-life indication
• Round red lens provides clear visual status at a glance
• Screw clamp connector ensures secure, tool-accessible wiring termination
• Vibration-resistant construction for use in demanding mechanical environments
• Rated for NEMA 1/2/3/3R/4/4X/12/13 enclosure types
• Meets multiple international standards including UL 508, CSA C22.2 No. 14, and EN/IEC 60947-5-1

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for industrial and commercial control panels requiring a 120-volt AC LED indicator with a round lens format.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable local codes. De-energize the control panel and verify absence of voltage before installing or replacing any pilot light. Screw clamp connections should be tightened to the connector manufacturer's specified torque range using an appropriate flat-blade screwdriver. Confirm enclosure NEMA rating is maintained after cutout and mounting to preserve environmental protection.
