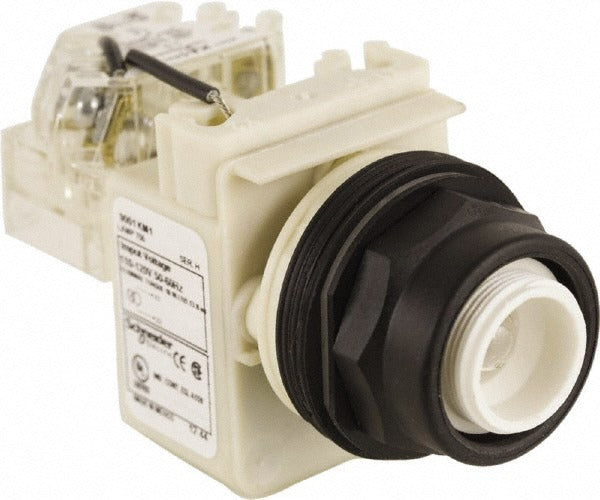

Schneider Electric 9001SKT1 Press-to-test Indicating Light

Product Description

The SCHNEIDER ELECTRIC 9001SKT1 is a press-to-test indicating light designed for industrial control panel applications. It operates at 110 VAC or 120 VAC at 50/60 Hz via transformer and features a round lens with a screw clamp connector. The unit is built to withstand demanding environments, carrying resistance ratings for corrosion, dust, and oil. Licensed electricians and control panel technicians install this indicator light as a status or fault signal device in machine control, process equipment, and panel boards. It meets multiple standards including CE, CSA, NEMA, and UL listings.

This indicating light is suited for both light industrial and heavy industrial panel environments where environmental resistance is required. The NEMA ratings cover indoor and outdoor enclosures including NEMA 4X for corrosion-resistant applications, making it appropriate for wash-down areas, outdoor controls, and wet-location panels. It is commonly used in motor control centers, machine tool panels, and process automation equipment where reliable visual indication is critical.

Key Features

• Press-to-test function allows lamp verification without system shutdown
• Round lens profile with screw clamp connector for secure wiring
• Operates at 110 VAC or 120 VAC at 50/60 Hz via transformer
• Rated for NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 enclosures
• Corrosion resistant, dust resistant, and oil resistant construction
• UL Listed (File E42259 CCN NKCR), CSA LR25490 Class 3211 03, and CE certified

Compatibility

Designed as an OEM-style replacement or retrofit indicating light for industrial control panels and enclosures requiring NEMA 4 or 4X rated pilot devices operating at 110-120 VAC.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the control panel before removing the existing indicator or making wiring connections to the screw clamp terminals. Verify that the panel transformer output matches the 110 VAC or 120 VAC operating voltage of this unit before energizing. Use the press-to-test feature after installation to confirm lamp integrity before returning the system to service.
