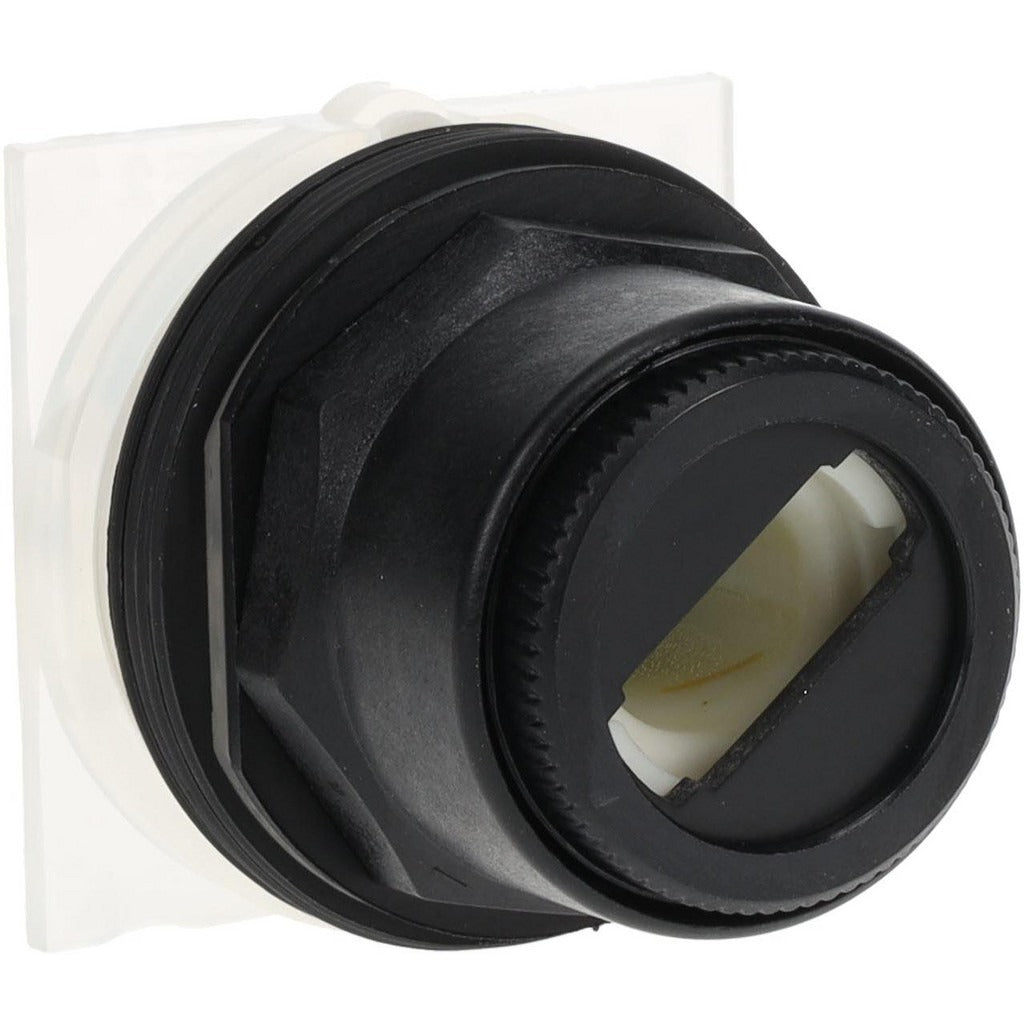

Schneider Electric 9001SKS53 3-position Momentary Selector Switch

Product Description

The SCHNEIDER ELECTRIC 9001SKS53 is a 3-position momentary selector switch designed for panel-mount industrial control applications. It uses a knob-style push button operator and returns to center upon release, making it suitable for spring-return control functions such as jog, inch, or momentary speed selection. The bezel is constructed of black plastic and features a 1.18-inch panel cutout diameter, fitting the standard 30 mm mounting hole common across industrial enclosures. Rated for NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 environments, this switch is built to resist dust, oil, moisture, and corrosion. It carries CE, CSA, and UL listings, making it appropriate for installations governed by applicable electrical safety standards.

This selector switch is suited for both light industrial and harsh-duty panel applications where a momentary 3-position operator is required. The NEMA 4X and 6 ratings make it a practical choice for wash-down areas, outdoor enclosures, and corrosive environments. It ships as the switch operator only with zero contact blocks included, so the appropriate contact block assembly must be sourced separately and mated to the operator during installation. Electricians and industrial control panel builders typically specify this component during new panel builds or as a drop-in operator replacement on existing 30 mm cutout assemblies.

Key Features

• 3-position momentary operation returns to center on release
• Knob-style push button operator with black plastic bezel
• 30 mm panel cutout (1.18 inches) fits standard industrial enclosures
• NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 rated for dust, oil, and weatherproof service
• Anti-corrosive and oil-resistant construction for harsh environments
• UL Listed, CSA certified, and CE marked
• Operator only — zero contact blocks included, compatible contact blocks sold separately

Compatibility

Designed for use with 30 mm industrial control panel assemblies requiring a momentary 3-position selector switch operator. No specific compatible models or replacement part numbers were provided in the product data.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and any applicable local codes. De-energize and lock out the control panel before mounting or servicing this operator. The switch mounts through a standard 30 mm panel cutout and requires separately sourced contact blocks to complete the electrical assembly. Verify that the enclosure NEMA rating meets or exceeds the environmental demands of the installation location.
