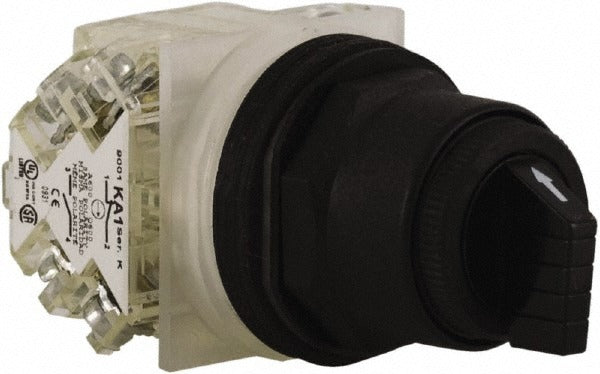

Schneider Electric 9001SKS43BH2 Selector Switch 600V 10A

Product Description

The SCHNEIDER ELECTRIC 9001SKS43BH2 is a 3-position maintained selector switch designed for industrial control panel applications. It features a black knob operator and panel-mount installation, rated for 600V AC at 10 amps. The maintained (MA) operation type means the switch holds its selected position until manually moved, making it well suited for motor control, circuit selection, and on/off/auto functions. The 30 mm mounting hole diameter fits standard 30 mm cutouts. Screw terminals provide secure, code-compliant wiring connections. Licensed electricians and panel builders install this switch in commercial and industrial control enclosures.

The 9001SKS43BH2 is used in residential, commercial, and industrial control panels where a reliable multi-position selector is required. Its NEMA ratings of 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 cover a wide range of environments, from indoor dry locations to outdoor weatherproof and corrosion-resistant installations. The plastic bezel with black finish is anti-corrosive, dust-resistant, oil-resistant, and weatherproof, making it appropriate for demanding service environments including washdown and outdoor enclosures.

Key Features

• 3-position maintained (MA) operation holds selected position without spring return
• Rated 600V AC at 10 amps for use in standard industrial control circuits
• 30 mm panel cutout for compatibility with standard 30 mm operator mounting holes
• NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 rated for broad environmental suitability
• Screw terminal connections for secure, serviceable wiring
• Certified to UL, CSA, and CE standards including Utilization Categories AC-15 and DC-13

Compatibility

Designed as an OEM-style replacement or new-installation selector switch for 30 mm panel-mount control stations in systems requiring a 3-position maintained operator.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the control panel before installing or servicing this switch. Use a 30 mm knockout or hole saw to prepare the panel cutout. Verify terminal torque requirements match the enclosure manufacturer's specifications before energizing.
