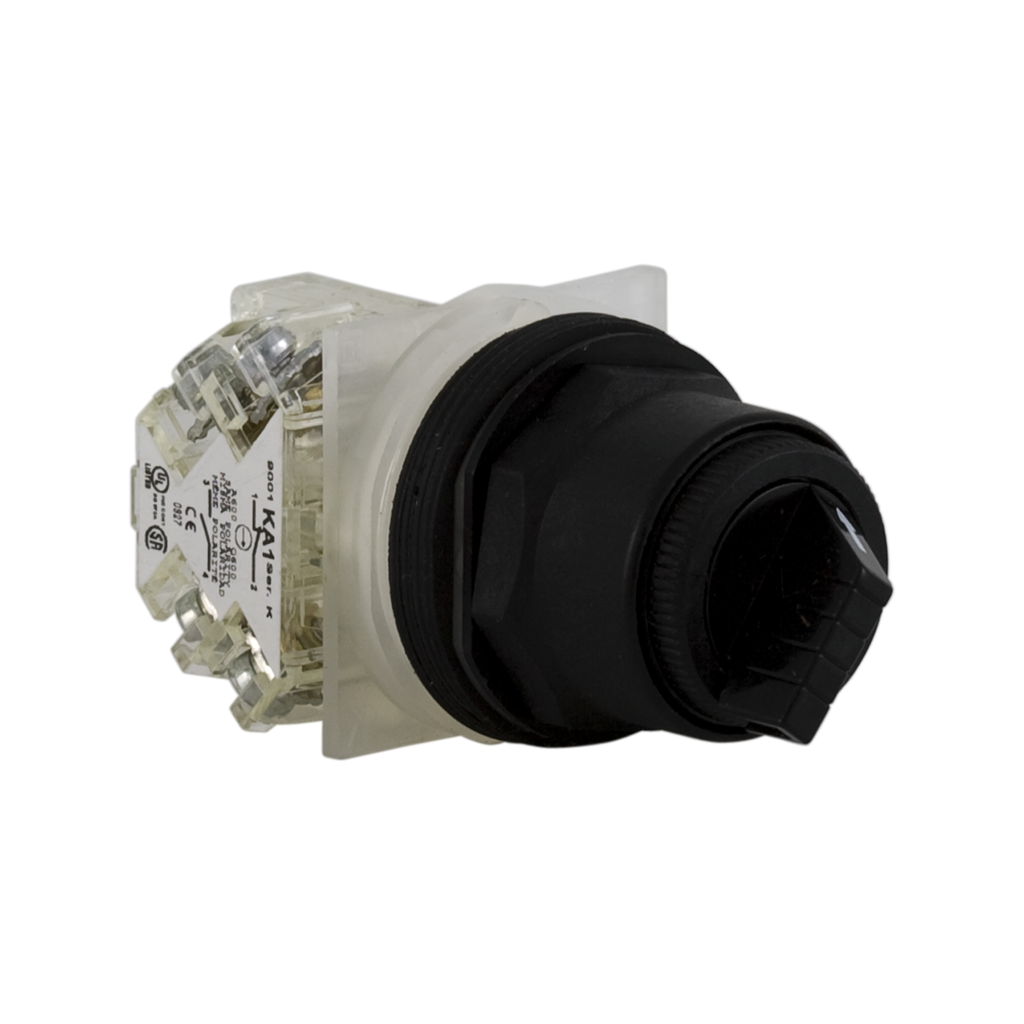

Schneider Electric 9001SKS11BH13 Square D 30 mm 10 Amp 600 VAC/VDC Selector Switch

Product Description

The Schneider Electric 9001SKS11BH13 is a 30 mm selector switch designed for enhanced control in industrial environments. This switch features a stay-put mechanism and operates with one normally open (NO) and one normally closed (NC) contact. It installs easily into standard panel cut-outs and connects with screw-clamp terminals.

• 30 mm diameter for versatile installation.
• IP66 rating for resistance against dust and water.
• Supports 10 Amp current and 600 Volt voltage ratings.

Product Highlights

The selector switch is ideal for versatile machine control, assisting in setting operating modes. It is durable against harsh conditions due to its impact-resistant and corrosion-resistant design.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: 9001SKS11BH13
• Voltage: 600 Volt
• Amperage: 10 Amp
• Actuator Type: 2 positions
• Application: 9001KA1 side 1 or 2
• Contact Configuration: 1 C/O
• Enclosure Rating: NEMA 1/2/3/3R/4/4X/6/12/13
• Country of Origin: Mexico
