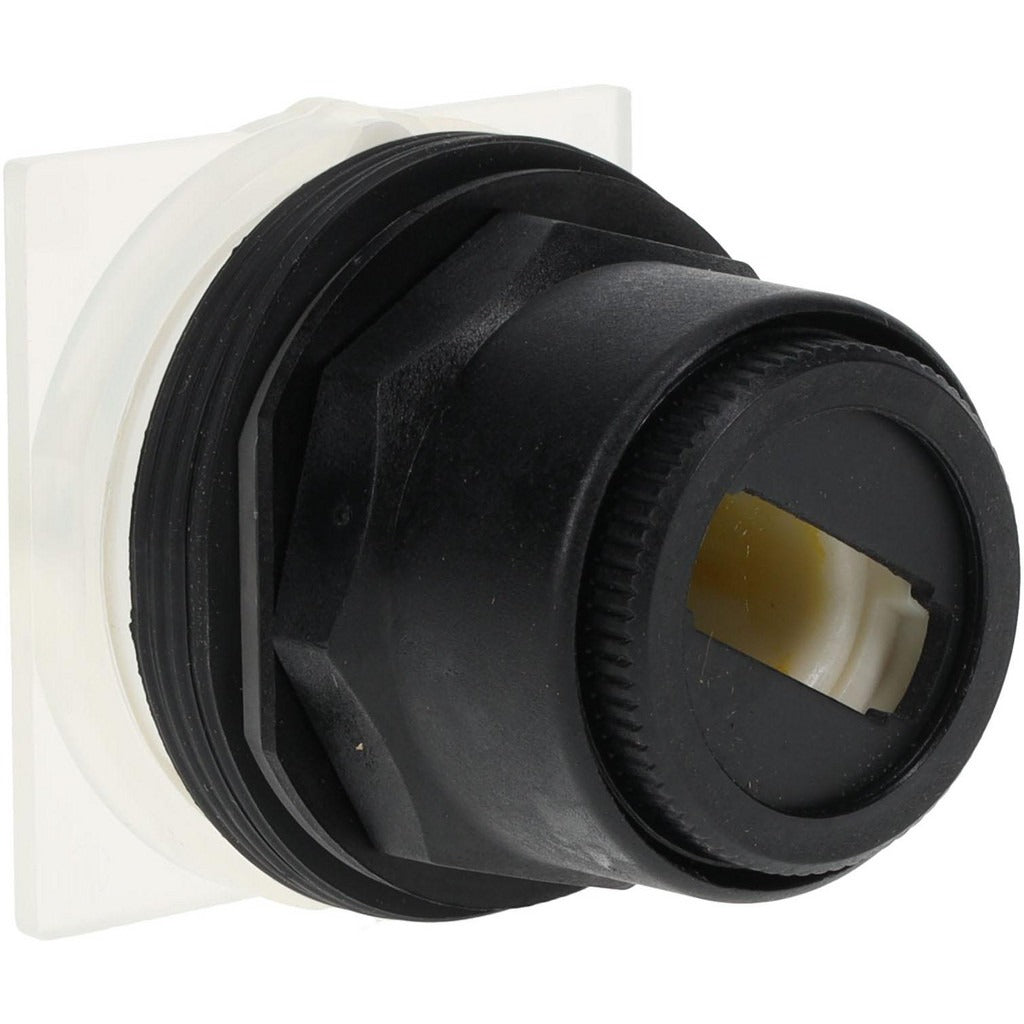

Schneider Electric 9001SKS11 Selector Switch 2-position

Product Description

The SCHNEIDER ELECTRIC 9001SKS11 is a 2-position maintained selector switch operator designed for panel-mount industrial control applications. This unit uses a knob-style operator and holds its selected position without spring return, making it suitable for mode selection, hand-off-auto circuits, and similar latching control functions. The bezel is constructed of black plastic with a 30mm mounting hole diameter, fitting standard 30mm panel cutouts. It carries UL, CSA, and CE certifications and is rated across multiple NEMA enclosure types, including NEMA 4X, making it appropriate for wash-down and outdoor-rated control panels. Licensed electricians and industrial control panel builders are the primary installers.

This selector switch operator is suited for residential, commercial, and light industrial control panels where a maintained 2-position selector function is required. It is rated for NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 enclosures, covering indoor, outdoor, weatherproof, dust-resistant, oil-resistant, and submersion-rated environments. The operator ships without contact blocks, so the installer must source and attach the appropriate contact block assemblies separately to complete a functional switch assembly.

Key Features

• 2-position maintained operation — holds selected position without spring return
• Knob-style operator fits standard 30mm panel cutout
• NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 enclosure ratings
• Anti-corrosive, dust-resistant, oil-resistant, and weatherproof construction
• Black plastic bezel with panel-mount installation
• UL Listed (File E42259, CCN NKCR), CSA LR25490 Class 3211 03, and CE certified
• Ships as operator only — no contact blocks included

Compatibility

Designed as an OEM-style 30mm selector switch operator compatible with standard 30mm push button and selector switch control station assemblies requiring a maintained 2-position knob operator. Contact blocks are sold separately and must be matched to this operator for a complete assembly.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize the control panel completely before removing or installing any operator or contact block assembly. Panel cutout must be 30mm to achieve proper fit and maintain the enclosure NEMA rating. Do not install contact blocks or tighten mounting hardware while the panel is energized.
