Schneider Electric 9001SKR9RH6 Push-button Switch 600V

Product Description

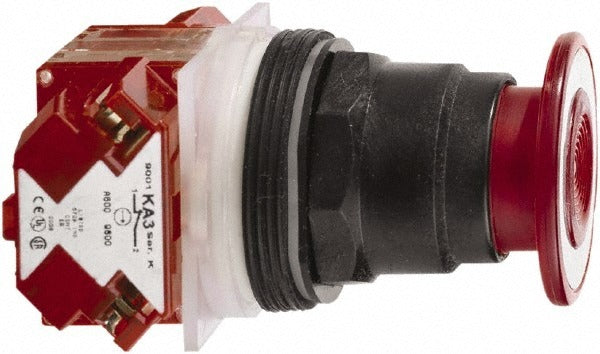

The SCHNEIDER ELECTRIC 9001SKR9RH6 is a maintained-action push-button switch designed for industrial control panel applications. It features a 30 mm mounting hole diameter and a red, round mushroom-head actuator made of plastic. The switch operates at up to 600 volts AC and handles up to 10 amps, with a normally closed (NC) contact configuration. This type of switch is installed by licensed electricians and industrial maintenance technicians working on motor control, machine guarding, and process control equipment.

This push-button switch is suited for use in industrial and commercial control panels where a maintained contact state is required. The extended mushroom-head design is commonly used for emergency stop or operator interface applications. Its NEMA ratings of 1, 2, 3, 3R, 4, 4X, 12, and 13 make it appropriate for a range of indoor and outdoor enclosures, including those exposed to dust, oil, and water ingress. The NC contact configuration holds the circuit closed until the button is actuated.

Key Features

• Maintained (MA) operation holds switch state after actuation without continuous operator force
• Normally closed (NC) contact configuration
• Red round mushroom-head actuator for clear visual identification
• Rated for 600 volts AC at 10 amps
• 30 mm mounting hole diameter fits standard industrial control panel cutouts
• NEMA ratings 1, 2, 3, 3R, 4, 4X, 12, and 13 for broad enclosure compatibility

Compatibility

Designed as an OEM-style replacement or direct-fit addition for industrial control panels requiring a 30 mm maintained push-button switch with a normally closed contact.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the control panel before beginning any wiring or switch replacement work. Verify that panel enclosure rating meets or exceeds the NEMA rating required for the installation environment. Do not exceed the rated voltage or amperage of the switch.
