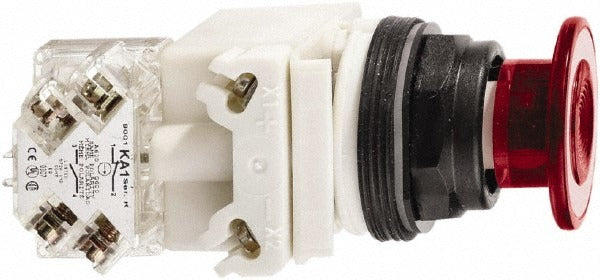

Schneider Electric 9001SKR9P38LRR Push-button Switch 120V

Product Description

The SCHNEIDER ELECTRIC 9001SKR9P38LRR is an illuminated, maintained-action push-button switch designed for industrial and commercial control panel applications. It features a red, round, extended mushroom-head operator in a plastic housing and mounts through a 30 mm diameter panel hole. Operating at 120 volts, the maintained (MA) action holds its switched state until deliberately actuated again, making it well suited for start/stop, emergency, or selector-style control functions. Licensed electricians and industrial control panel builders are the primary installers of this device.

This push-button switch is intended for use in control panels, machinery, and industrial equipment where a maintained-contact, illuminated operator is required. The extended mushroom-head profile provides a large, easily identified actuation surface, and the red color coding supports common stop or hazard-alert conventions in control panel wiring. It is appropriate for both indoor and outdoor-rated enclosures, given its broad NEMA rating coverage.

Key Features

• Maintained (MA) action holds switched state without continuous operator pressure
• Illuminated operator provides visual status indication at 120 volts
• Extended round mushroom-head in red plastic for high-visibility stop or alert applications
• 30 mm mounting hole diameter fits standard 30 mm operator cutouts
• Rated for NEMA 1, 2, 3, 3R, 4, 4X, 12, and 13 enclosures
• Meets CSA, UL 508, and multiple EN/IEC and JIS standards for industrial control equipment

Compatibility

Designed as an OEM-style replacement or new-installation push-button operator for 30 mm industrial control panel assemblies requiring a maintained-action, illuminated mushroom-head switch at 120 volts.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the control panel before mounting or wiring this switch. The 30 mm panel cutout should be clean and free of burrs before inserting the operator. Verify that the enclosure NEMA rating matches the environmental requirements of the installation before final assembly.
