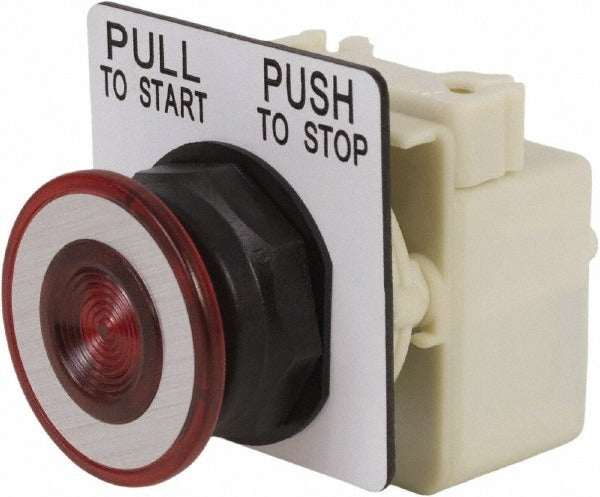

Schneider Electric 9001SKR9P1R Push-button Switch 120V

Product Description

The SCHNEIDER ELECTRIC 9001SKR9P1R is a maintained-action push-button switch designed for industrial and commercial control panel applications. It features a 30 mm mounting hole diameter and operates at 120 volts AC, making it a standard fit for machine control circuits and operator interface panels. The extended straight push button in red provides a clear visual indicator for operators. Maintained operation means the switch holds its actuated state until deliberately returned, distinguishing it from momentary types. Licensed electricians and panel builders install this switch as part of control station assemblies.

This switch is suited for use in industrial control panels, HVAC control stations, motor starters, and process equipment enclosures where maintained on/off operator input is required. The NEMA ratings cover a wide range of environments, including indoor, outdoor, watertight, and corrosion-resistant locations. Its red extended actuator is commonly used to indicate stop, emergency, or caution functions in machine control applications.

Key Features

• Maintained (MA) operation holds switch state after actuation without continuous operator pressure
• 30 mm mounting hole diameter fits standard 30 mm cutout control panels and enclosures
• 120 volts AC rated for compatibility with standard North American control circuits
• Red extended straight actuator provides high visibility for operator interface panels
• NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 ratings cover indoor, outdoor, watertight, and corrosion-resistant enclosure types

Compatibility

Designed as an OEM-style replacement for 30 mm maintained push-button switch positions in industrial control panels and operator stations requiring 120 volts AC maintained switching.

Installation Notes

Installation should be performed by a licensed electrician following applicable NEC guidelines. De-energize the control panel and verify zero voltage at the terminal block before removing or installing the switch. The switch mounts through a 30 mm panel cutout and is secured with the supplied hardware. Confirm the maintained operation logic is appropriate for the circuit before placing the panel back in service.
